How to Safely Jump-Start a Modern Hybrid Car Without Damaging the Electronics: A 12-Step Guide

Introduction

Modern hybrid vehicles combine a conventional internal combustion engine with an electric motor and a high-voltage battery pack, making jump-starting them trickier than traditional cars. Mistakes can fry sensitive electronic control units or even damage the hybrid system. This comprehensive guide walks you through the safe, step-by-step process to jump-start a hybrid car (like a Toyota Prius, Honda Insight, or Ford Fusion Hybrid) using either a traditional booster pack or a portable jump starter. We also cover essential preparatory checks, safety gear, and post-start best practices. By following these steps, you will protect your vehicle’s computer systems and get back on the road without costly repairs.

Step 1: Understand Your Hybrid’s Electrical Layout

Hybrids have two separate electrical systems: a low-voltage 12V auxiliary system (like a regular car) and a high-voltage traction battery (typically 200-300V). The jump-starting procedure only involves the 12V battery, which powers the car’s computers, lights, and starter relay. The high-voltage battery is isolated during normal operation, but connecting jumper cables incorrectly can bridge the circuits. Always locate the 12V battery—often in the trunk, under the rear seat, or in a dedicated fuse box compartment—by consulting your owner’s manual.

Step 2: Gather the Right Equipment

You will need either a traditional car roadside emergency kit with jumper cables (at least 4-gauge, 20-foot length) or a modern lithium portable jump starter with over-current protection. Avoid using 10-gauge cables, as they may overheat under load. Also have a multimeter (optional) to check battery voltage, and wear insulated gloves. Keep a car first aid kit nearby in case of accidental acid spills or electrical shock.

Step 3: Safety First—Disable the Hybrid System

Before connecting any cables, turn off the hybrid system completely: press the Start/Stop button (without pressing the brake) until the dashboard display goes dark and the “Ready” light turns off. Remove the key fob from the vehicle and wait at least 5 minutes. This ensures that the high-voltage system is de-energized and prevents accidental engagement of the electric motor during the jump-start.

Step 4: Identify the 12V Battery Terminals

In many hybrids, the 12V battery terminals are marked with distinct colors (red for positive, black or blue for negative). However, some vehicles have a dedicated jump-start terminal under the hood—for example, a positive terminal with a red cover and a separate ground bolt (like on a Toyota Prius). Use your owner’s manual to find the correct connection points. Never attach the negative cable to the high-voltage battery’s negative terminal.

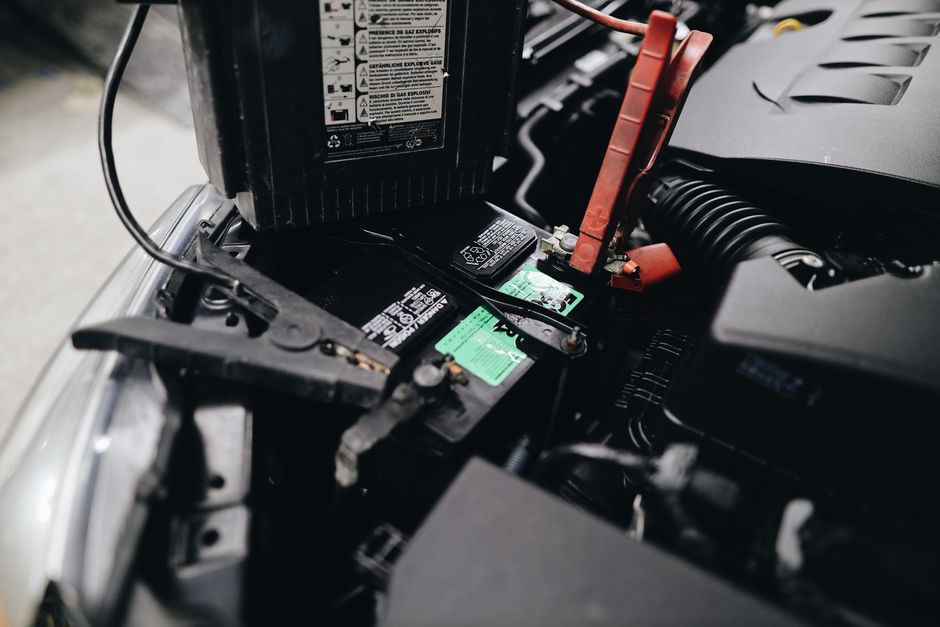

Step 5: Connect the Jump Starter or Booster Pack

Using a portable jump starter: Charge the unit fully (at least 80% capacity) before use. Connect the red clamp to the dead 12V battery’s positive terminal (+) and the black clamp to the negative terminal (-) only if the unit has reverse polarity protection. If not, connect the black clamp to an unpainted engine ground bolt or chassis ground at least 18 inches away from the battery to avoid sparks near flammable gases. Then turn on the jump starter.

Step 6: Connect Traditional Jumper Cables (Donor Car)

If using a donor vehicle, keep it OFF during connections. Connect one red clamp to the dead battery’s positive, the other red clamp to the donor battery’s positive. Then connect one black clamp to the donor battery’s negative, and the final black clamp to a ground point on the dead hybrid (never directly to its negative terminal). This sequence minimizes voltage spikes. Once connected, start the donor car and let it idle for 5 minutes before attempting to start the hybrid.

Step 7: Power Up the Hybrid System

After waiting, try to start the hybrid: press the brake pedal firmly and push the Start button as you would normally. Do not pump the gas pedal—hybrids use electronic throttle control. The dashboard should illuminate, and the “Ready” light will come on, confirming the system is live. If the engine cranks slowly or fails, check cable connections for corrosion or poor contact, or let the donor car run another 5-10 minutes.

Step 8: Disconnect in Reverse Order

Once the hybrid is running, do not rev the engine. Immediately disconnect the cables in reverse order for a jump starter: remove black from ground first, then red from the positive. For a donor car, disconnect black from the dead car’s ground, then black from donor’s negative, then red from donor’s positive, then red from dead car’s positive. Keep metal clamps from touching each other during removal.

Step 9: Let the Hybrid Recharge Its 12V Battery

Many hybrids charge the 12V battery only when the high-voltage system is active. After jump-starting, keep the car in “Ready” mode (with the engine on or off, depending on hybrid design) for at least 30 minutes. Drive gently at moderate speeds—avoid starting and stopping aggressively—to allow the DC-DC converter to replenish the auxiliary battery.

Step 10: Replace or Service the 12V Battery

A dead hybrid 12V battery often indicates an aging unit. If it fails again within a week, replace it with a dedicated AGM or lithium battery designed for hybrids. While waiting, you can use a silicone funnel set to add distilled water (if the battery has accessible caps) but in most modern sealed batteries, topping off is not possible. Consider using a maintenance charger to test the battery condition.

Step 11: Test Drive and System Check

Take a short test drive of about 10 minutes. Observe any warning lights (especially “Check Hybrid System” or “12V Battery Low”). If the engine runs intermittently or the brake pedal feels hard, pull over safely and recheck connections. Use a multimeter on the 12V battery while idling—should read 13.8-14.2V from the DC-DC converter. Anything lower indicates a charging issue.

Step 12: Prevent Future Issues

To avoid another dead battery, follow these habits: park with the hybrid system fully shut down; avoid leaving accessories (radio, lights) on with the engine off; if you store the car for weeks, keep a trickle charger on the 12V battery. Keep a portable jump starter in the trunk (even though it’s a hybrid) as a backup—but store it at moderate temperatures (above freezing) for maximum lithium-ion performance. Also consider carrying a small car vacuum cleaner to remove debris that can accidentally short battery terminals.

Conclusion

Jump-starting a modern hybrid is not as daunting as it seems once you understand its dual-voltage architecture. By following this step-by-step guide—locating the 12V battery, using the correct equipment, and disconnecting in the proper sequence—you can safely revive your hybrid without damaging sensitive electronics. Remember that prevention is the best cure: check your 12V battery every six months and carry a quality car roadside emergency kit for peace of mind. With these practices, you’ll keep your hybrid running smoothly while saving hundreds on dealership service calls.
