Water Heater Thermostat Replacement

If your electric water heater is producing water that is too hot, not hot enough, or the high-limit switch keeps tripping, a faulty thermostat is often the cause. Replacing a water heater thermostat is a straightforward DIY repair that takes about 30-45 minutes and costs a fraction of a service call.

This guide covers how to test your thermostat, confirm it needs replacement, and install a new one step by step.

How the Thermostat Works

Most electric water heaters have two thermostats - an upper and a lower - each controlling one heating element. The upper thermostat also contains the high-limit switch (the red reset button), which cuts power to both elements if the water temperature gets dangerously high.

The thermostats sense the water temperature through the tank wall and cycle the heating elements on and off to maintain the set temperature.

Signs of a Faulty Thermostat

• Water is too hot even though the dial is set correctly
• Water is not hot enough even though the element tests fine
• The high-limit switch (red reset button) keeps tripping
• No hot water despite the heating elements testing as good
• Water temperature is inconsistent

How to Test the Thermostat

1. Turn off the circuit breaker
2. Remove the access panel and pull back the insulation
3. Press the red reset button on the upper thermostat - if it clicks, it had tripped and may just need resetting
4. Set your multimeter to continuity or resistance mode
5. With the thermostat set to its highest temperature, test across the terminals - a working thermostat should show continuity
6. As the thermostat cools below its set point, it should open (no continuity)

If the thermostat does not respond correctly to temperature changes, replace it.

AstroAI Digital Multimeter - test thermostat continuity accurately before replacing.

What You Will Need

• Replacement thermostat (upper and/or lower)
• Flathead screwdriver
• Non-contact voltage tester
• Multimeter

EWH-00 Water Heater Thermostat - upper and lower thermostats for double-element electric water heaters. Easy snap-in installation, no tools needed for the thermostat itself.

EWH-01 Electric Water Heater Tune-Up Kit - includes two thermostats AND two heating elements. If your heater is over 5 years old, replace everything at once for maximum reliability.

How to Replace the Thermostat: Step by Step

Step 1: Turn Off Power at the Breaker

Turn off the circuit breaker for the water heater. Use a non-contact voltage tester to confirm power is off before touching any wires.

Step 2: Remove the Access Panel

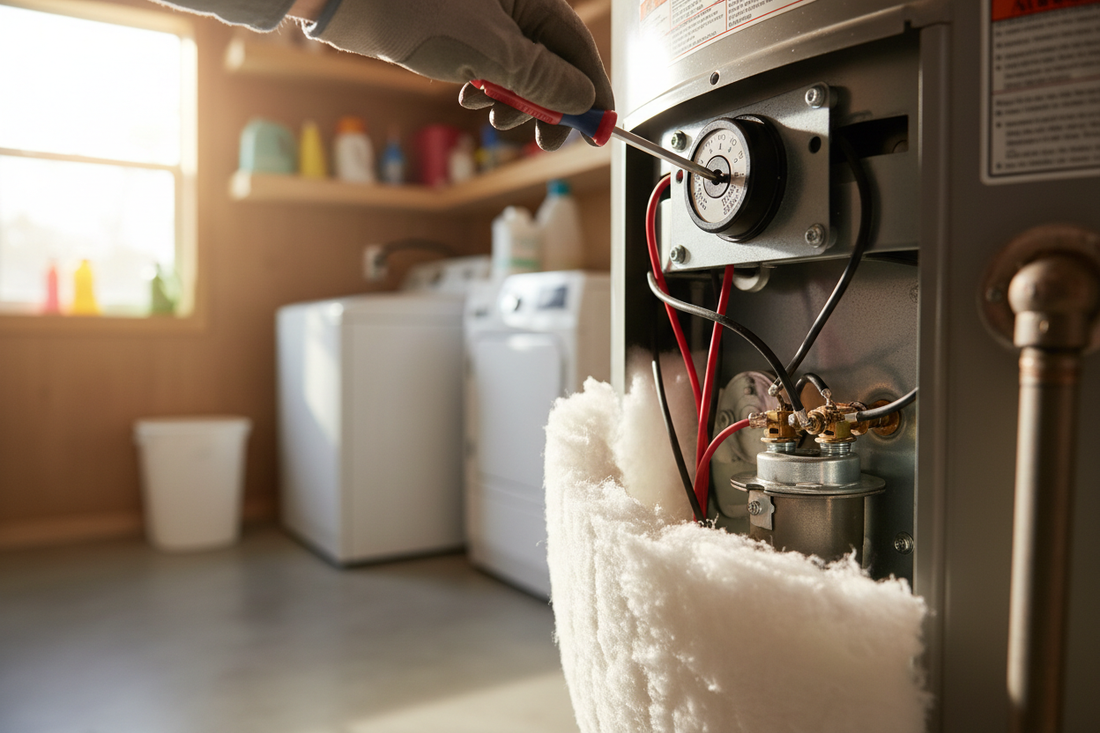

Remove the upper access panel (for the upper thermostat) or lower access panel (for the lower thermostat) using a screwdriver. Pull back the insulation carefully to expose the thermostat.

Step 3: Take a Photo of the Wiring

Before disconnecting anything, take a clear photo of the wiring connections on the thermostat. This is your reference for reconnecting the new one correctly.

Step 4: Disconnect the Wires

Loosen the terminal screws and disconnect all wires from the thermostat. Label them with tape if needed to keep track.

Step 5: Remove the Old Thermostat

The thermostat clips onto a bracket on the tank wall. Slide it upward or press the release tabs to unclip it and remove it.

Step 6: Install the New Thermostat

1. Snap the new thermostat into the bracket in the same position as the old one - it must make firm contact with the tank wall to sense temperature accurately
2. Set the temperature dial to 120 degrees F before reconnecting wires

Step 7: Reconnect the Wires

Reconnect all wires to the correct terminals, referring to your photo. Tighten all terminal screws firmly.

Step 8: Reset the High-Limit Switch

Press the red reset button on the upper thermostat firmly until you hear a click. This arms the high-limit switch.

Step 9: Replace Insulation and Panel

Fold the insulation back into place and replace the access panel.

Step 10: Restore Power and Test

1. Turn the circuit breaker back on
2. Wait 1-2 hours for the tank to heat fully
3. Test water temperature at the nearest faucet with a thermometer
4. Adjust the thermostat dial if needed and recheck after 1 hour

Upper vs Lower Thermostat: Which One to Replace?

When in doubt, replace both. The EWH-01 kit includes both thermostats and both heating elements for a complete tune-up.
