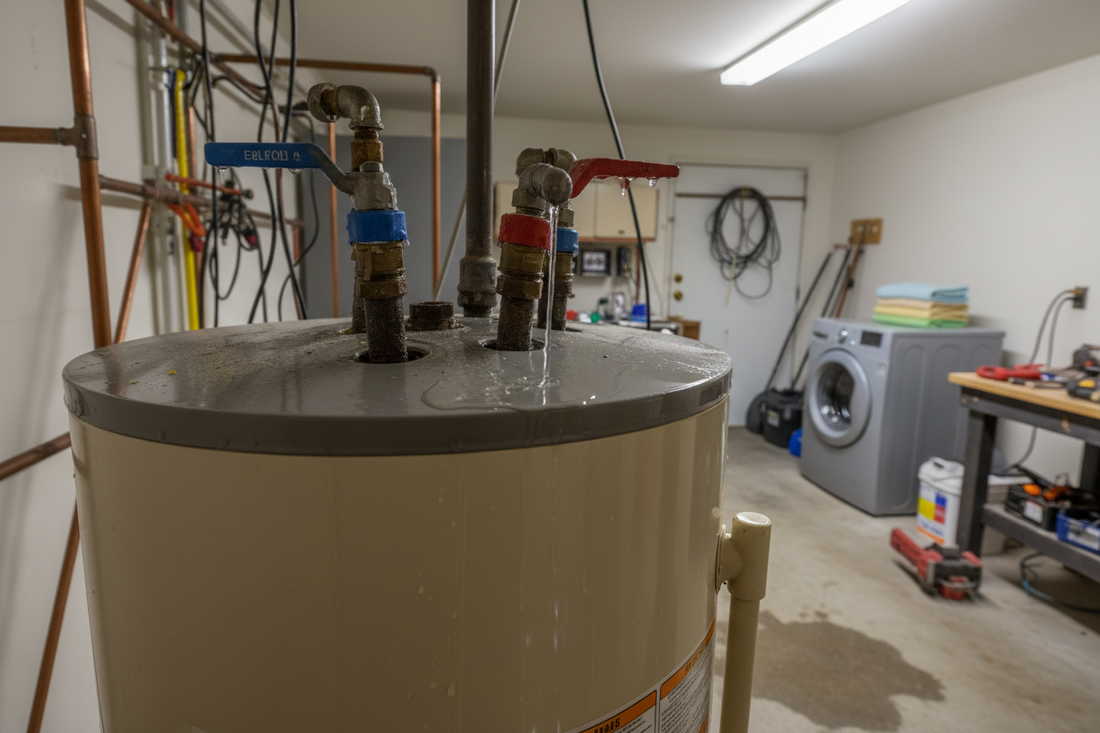

Water Heater Leaking from Top

A leak from the top of your water heater is almost always fixable without replacing the unit. Unlike a bottom leak - which can indicate a failed tank - leaks from the top are typically caused by loose fittings, a faulty inlet valve, or a corroded anode rod port. This guide helps you identify the exact source and fix it.

Step 1: Identify the Source of the Leak

Dry the top of the water heater completely with a towel, then watch carefully to see exactly where water appears. Common sources at the top include:

• Cold water inlet fitting (where cold water enters the tank)
• Hot water outlet fitting (where hot water leaves the tank)
• Anode rod port (if the rod was recently inspected or replaced)
• T&P relief valve (on the side near the top, or on top of the tank)
• Flexible supply lines connecting the tank to household plumbing

Cause 1: Loose or Corroded Pipe Fittings

The most common cause of top leaks. The threaded fittings connecting the cold inlet and hot outlet pipes to the tank can loosen over time or develop corrosion that allows water to seep through.

Fix: Try tightening the fitting with a pipe wrench - just a quarter to half turn. Do not overtighten. If tightening does not stop the leak, the fitting or its threads may be corroded and need replacement.

Mr. Pen 10-Inch Pipe Wrench - tighten or remove corroded fittings at the top of the tank.

Gasoila Yellow PTFE Thread Seal Tape - reseal threads when reinstalling fittings.

Cause 2: Leaking Cold Water Inlet Valve

The shutoff valve on the cold water supply line at the top of the heater can develop a slow drip from the valve stem or body, especially on older ball valves or gate valves.

Fix: If the valve body is leaking, replace the valve. Turn off the main water supply first.

Cause 3: Anode Rod Port Leak

If the anode rod was recently removed for inspection or replacement, the port may not have been resealed properly. A missing or insufficient amount of PTFE tape on the threads will allow water to seep out.

Fix: Turn off the water supply, drain slightly to reduce pressure, remove the anode rod, add 4-6 layers of PTFE tape to the threads, and reinstall.

RV Water Heater Anode Rod 2-Pack - if the existing rod is depleted, replace it while you have the port open.

Gasoila PTFE Thread Seal Tape - use 4-6 layers on the anode rod threads for a leak-free seal.

Mr. Pen Pipe Wrench - for removing and reinstalling the anode rod.

Cause 4: T&P Relief Valve Leaking

The T&P valve is usually located on the side of the tank near the top, or on top of the tank itself. If it is dripping from the valve body or the threads where it connects to the tank, it needs to be replaced.

Fix: Replace the T&P valve. See our full guide on T&P valve replacement for step-by-step instructions.

Camco T&P Relief Valve - all brass body, stainless steel spring, 3/4 inch NPT. Reliable replacement for a leaking T&P valve.

Cause 5: Leaking Flexible Supply Lines

The flexible braided supply lines connecting the tank to the household plumbing can develop leaks at the connection points, especially if they are old or were not tightened properly during installation.

Fix: Tighten the connections at both ends of the supply line. If the line itself is cracked or corroded, replace it.

How to Fix a Top Leak Step by Step

1. Dry the top of the tank completely
2. Watch carefully to identify the exact source of the leak
3. Turn off the cold water supply valve
4. If the leak is at a threaded fitting: try tightening first, then reseal with PTFE tape if needed
5. If the leak is at the T&P valve: replace the valve
6. If the leak is at the anode rod port: remove, add PTFE tape, reinstall
7. Restore water supply and check for leaks

When to Call a Plumber

Call a plumber if:

• The tank threads themselves are stripped or corroded - this cannot be fixed with tape
• You are not comfortable working with the plumbing connections
• The leak continues after tightening and resealing
