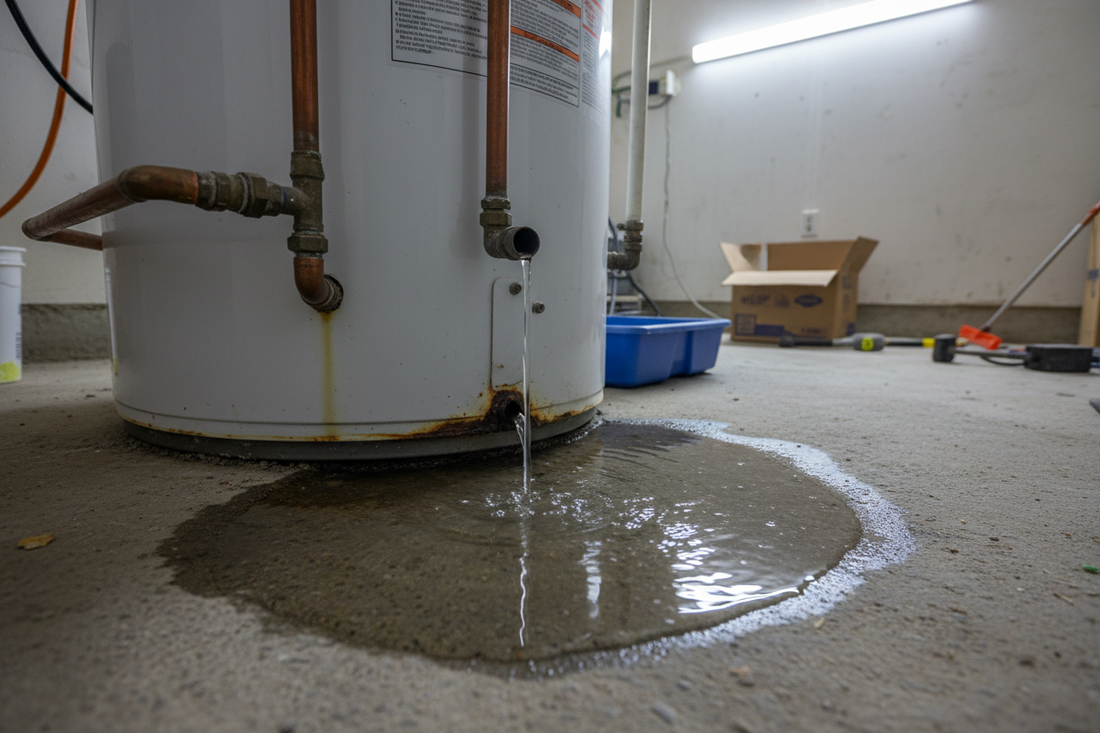

Water Heater Leaking from Bottom

Finding water pooling at the base of your water heater is alarming - and it should be taken seriously. A leak from the bottom of a water heater can mean anything from a simple loose fitting to a failed tank that needs immediate replacement. This guide helps you identify the source quickly and take the right action.

Step 1: Identify Where the Water Is Actually Coming From

Water at the base of the heater does not always mean the tank itself is leaking. Before assuming the worst, trace the water to its actual source. Common sources include:

• The drain valve at the very bottom of the tank
• The T&P relief valve discharge pipe (water runs down the side and pools at the base)
• Pipe connections at the top of the tank (water runs down the outside)
• Condensation on the tank surface (especially in humid conditions or when a new heater first heats up)
• The tank itself - an internal leak

Dry the area completely with a towel, then watch carefully to see exactly where new water appears.

Cause 1: Leaking Drain Valve

The drain valve at the bottom of the tank is the most common source of bottom leaks. The valve may be slightly open, have a worn washer, or have a cracked plastic body - especially if it has never been opened or was opened recently for the first time.

Fix: First, try tightening the valve slightly with a wrench. If it still drips, replace the drain valve.

Mr. Pen 10-Inch Pipe Wrench - tighten or remove the drain valve.

Gasoila Yellow PTFE Thread Seal Tape - seal the new drain valve threads during replacement.

Flexzilla Garden Hose 50ft - drain the tank before replacing the valve.

Rubbermaid 12-Quart Bucket - catch water during the repair.

Cause 2: T&P Relief Valve Discharge

The T&P valve discharge pipe runs from the valve (usually on the side of the tank) down toward the floor. If the T&P valve is releasing water due to excess pressure or temperature, water will run down the pipe and pool at the base - making it look like a bottom leak.

Fix: Check if the T&P valve is dripping. If it is, test it and replace it if needed. Also check if you need a thermal expansion tank to prevent pressure buildup.

Camco T&P Relief Valve - replace a leaking or faulty T&P valve.

Cause 3: Condensation

New water heaters or heaters in humid environments can produce condensation on the outside of the tank, especially during the first few heating cycles. This is normal and will stop once the tank reaches operating temperature.

Fix: Wait 24 hours and monitor. If the water disappears on its own, it was condensation. If it continues, investigate further.

Cause 4: Internal Tank Corrosion (Most Serious)

If water is seeping from the bottom seam of the tank or from the tank body itself - not from a valve or fitting - the tank has corroded through from the inside. This is the most serious cause and cannot be repaired.

Signs of internal tank failure:

• Water appears to seep from the tank body or bottom seam, not from any fitting
• The water is rusty or discolored
• The heater is over 10 years old
• You have had rusty water or sediment problems for some time

Fix: Replace the water heater immediately. A tank that is leaking from the body will fail completely - often flooding the surrounding area. Do not delay.

Rheem 18kW Tankless Electric Water Heater - no tank to corrode, built to last 20+ years.

Ranein Natural Gas Tankless Water Heater - 8.5 GPM whole-home hot water, eliminates tank failure risk.

How to Prevent Future Tank Leaks

• Replace the anode rod every 2-3 years - it protects the tank lining from corrosion
• Flush the tank annually to remove corrosive sediment
• Test the T&P valve annually
• Replace the drain valve with a brass ball valve for reliability

RV Water Heater Anode Rod 2-Pack - the single most important part for preventing internal tank corrosion and leaks.

Sediment Buster Water Heater Tool - annual flushing removes corrosive sediment before it damages the tank.

What to Do Right Now If Your Tank Is Leaking Badly

1. Turn off the cold water supply valve at the top of the heater
2. Turn off the heater - electric: circuit breaker; gas: control knob to PILOT
3. Connect a garden hose to the drain valve and drain the tank to prevent flooding
4. Call a plumber if the tank body is leaking

Summary
