Water Heater Heating Element Replacement

If your electric water heater is not producing enough hot water, takes too long to recover, or produces no hot water at all, a failed heating element is the most likely cause. Replacing a heating element is one of the most common and cost-effective water heater repairs - and it is a straightforward DIY job that most homeowners can complete in 1-2 hours.

How Electric Water Heater Elements Work

Most electric water heaters have two heating elements - an upper and a lower. The upper element heats the top portion of the tank first to provide quick hot water. The lower element then heats the rest of the tank for sustained hot water supply.

When one element fails, the heater loses significant capacity. When both fail, there is no hot water at all.

Signs of a Failed Heating Element

• No hot water at all (both elements failed, or upper element failed)
• Hot water runs out very quickly (lower element failed)
• Water takes much longer than usual to heat up
• Circuit breaker trips repeatedly (element may be shorted)
• Water heater hums or makes unusual sounds

How to Test a Heating Element

Before replacing, confirm the element has actually failed by testing it with a multimeter.

1. Turn off the circuit breaker for the water heater
2. Remove the access panel and pull back the insulation
3. Disconnect the wires from the element terminals
4. Set your multimeter to resistance (ohms)
5. Touch one probe to each terminal on the element - a working element reads 10-30 ohms depending on wattage
6. Touch one probe to a terminal and the other to the metal tank body - any reading other than infinite (OL) means the element is shorted to ground and must be replaced

AstroAI Digital Multimeter - accurate and easy to use for testing heating elements and electrical continuity.

What You Will Need

• Replacement heating element (correct wattage and voltage for your heater)
• Element wrench or 1-1/2 inch socket
• Multimeter
• Garden hose and bucket
• Flathead screwdriver
• Non-contact voltage tester

EWH-01 Electric Water Heater Tune-Up Kit - includes two 4500W 240V heating elements and two thermostats. Replace both elements and thermostats at once for a complete restoration. Fits most standard electric water heaters.

Flexzilla Garden Hose 50ft - for draining the tank before element replacement.

Rubbermaid 12-Quart Bucket - catch drained water.

How to Replace a Heating Element: Step by Step

Step 1: Turn Off Power at the Breaker

Turn off the circuit breaker for the water heater. Use a non-contact voltage tester to confirm power is off before touching any wires.

Step 2: Turn Off the Cold Water Supply

Close the cold water inlet valve at the top of the heater.

Step 3: Drain the Tank

Connect a garden hose to the drain valve and drain the tank completely. The heating elements are submerged in water - you must drain the tank before removing them or water will flood out.

Step 4: Remove the Access Panel

Remove the upper or lower access panel (depending on which element you are replacing) using a screwdriver. Pull back the insulation to expose the thermostat and element.

Step 5: Disconnect the Wires

Take a photo of the wiring before disconnecting anything. Disconnect the two wires from the element terminals by unscrewing the terminal screws.

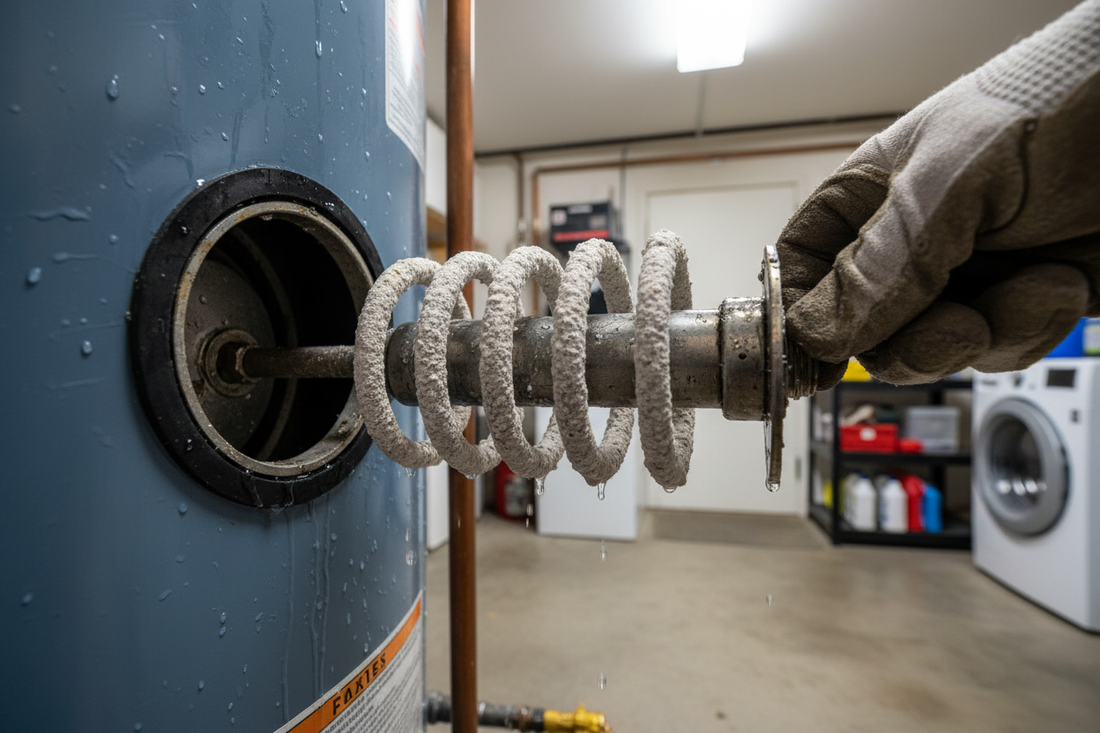

Step 6: Remove the Old Element

Use an element wrench or 1-1/2 inch socket to unscrew the element counterclockwise. It may be tight - apply steady pressure. Once loose, unscrew by hand and pull the element straight out.

Inspect the old element - look for burn marks, cracks, or heavy mineral scale buildup.

Step 7: Install the New Element

1. Check that the new element gasket is in place
2. Insert the new element into the opening and thread it in by hand
3. Tighten with the element wrench until snug - do not overtighten

Step 8: Reconnect the Wires

Reconnect the two wires to the element terminals, matching the original configuration from your photo.

Step 9: Replace the Thermostat (Recommended)

While the access panel is open, it is good practice to replace the thermostat at the same time. A failing thermostat can cause the new element to overheat and fail prematurely.

EWH-01 Tune-Up Kit includes both elements and thermostats - replace everything at once for maximum reliability.

Step 10: Refill and Restore Power

1. Replace the insulation and access panel
2. Open the cold water supply valve
3. Open a hot water faucet to purge air until water flows steadily
4. Close the faucet
5. Turn the circuit breaker back on
6. Wait 1-2 hours for the tank to heat fully
7. Test hot water at a faucet

Should You Replace One Element or Both?

If one element has failed, the other is likely close behind - especially if the heater is over 5 years old. Replacing both elements and both thermostats at the same time costs only slightly more and saves you from doing the job again in a few months.

The EWH-01 kit includes everything needed for a complete tune-up.
