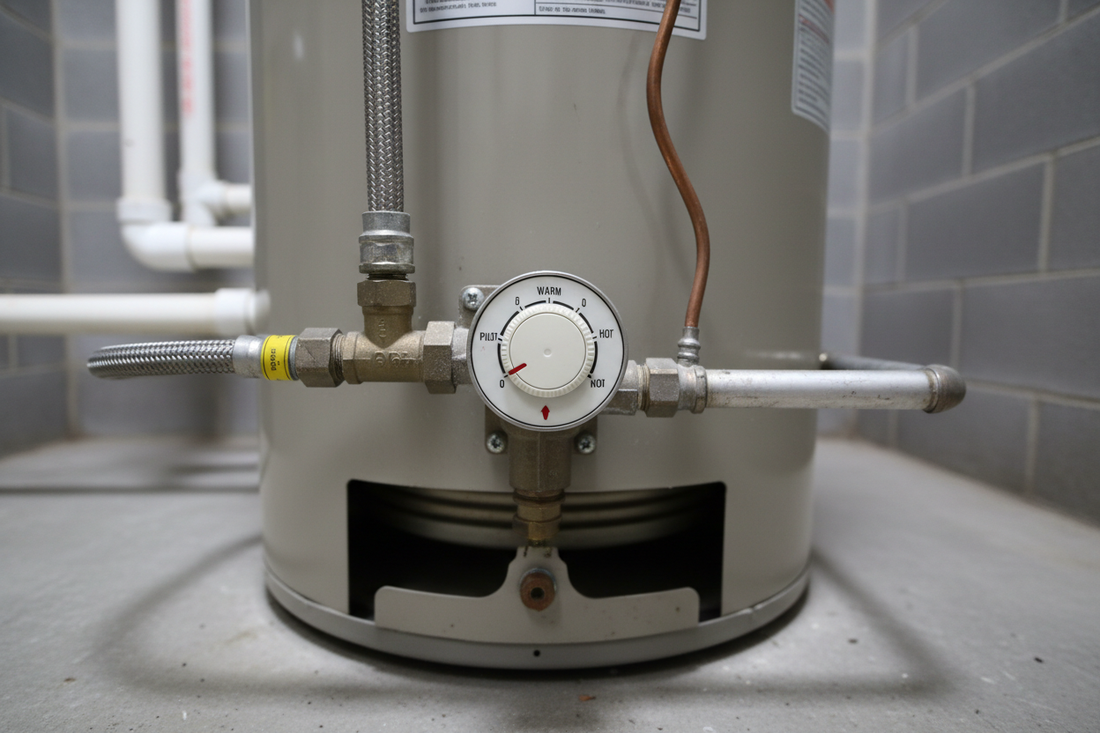

Water Heater Gas Valve Replacement

The gas control valve - also called the gas valve or thermostat valve - is the brain of your gas water heater. It controls the pilot light, the burner, and the water temperature. When it fails, the heater may produce no hot water, water that is too hot, or a pilot that will not stay lit. This guide explains how to diagnose a faulty gas valve and replace it.

What Does the Gas Control Valve Do?

The gas control valve performs several functions simultaneously:

• Controls gas flow to the pilot light
• Controls gas flow to the main burner
• Receives the signal from the thermocouple to confirm the pilot is lit
• Senses water temperature through the thermostat and cycles the burner on and off
• Contains the high-temperature safety shutoff

Because it handles all of these functions, a faulty gas valve can cause a wide range of symptoms.

Signs of a Faulty Gas Control Valve

• Pilot lights but the main burner never fires
• Water is too hot even with the dial set correctly
• Water is not hot enough even with the dial at maximum
• Pilot will not stay lit even after replacing the thermocouple
• You hear a clicking sound but the burner does not ignite
• The status light on the valve flashes an error code

How to Read the Status Light Error Codes

Most modern gas water heaters have a status light on the gas valve that flashes to indicate the heater's condition. Common codes:

Check your specific model's manual for the exact codes - they vary by manufacturer.

Diagnosing the Gas Valve

Before replacing the gas valve, rule out simpler causes:

1. Check the thermocouple first - a faulty thermocouple is far more common and much cheaper to replace. If the pilot lights but goes out when you release the knob, replace the thermocouple before the gas valve.
2. Check the status light error code - a 7-flash code specifically indicates gas valve failure
3. Check the thermopile voltage - use a multimeter to test the thermopile output. It should produce 400-850 millivolts when the pilot is lit. Low voltage indicates a thermocouple issue, not a gas valve issue.

AstroAI Digital Multimeter - test thermopile voltage to confirm whether the issue is the thermocouple or the gas valve before replacing either.

Resideo 24-Inch Replacement Thermocouple - replace the thermocouple first - it is the most common cause of pilot and burner issues and costs a fraction of a gas valve.

What You Will Need for Gas Valve Replacement

• Replacement gas valve (must match your heater's model)
• Pipe wrench
• Adjustable pliers
• PTFE thread seal tape rated for gas
• Gas leak detector solution or soapy water
• Bucket and towels

Gas Valve 70000 BTU - replacement gas valve for residential water heaters. Confirm compatibility with your heater's model and BTU rating before purchasing.

Mr. Pen 10-Inch Pipe Wrench - for disconnecting and reconnecting gas line fittings.

Gasoila Yellow PTFE Thread Seal Tape - rated for gas lines, seal all threaded connections.

How to Replace the Gas Control Valve: Step by Step

Safety warning: This repair involves working with gas lines. If you are not comfortable working with gas, call a licensed plumber. Always check for gas leaks after completing the repair.

Step 1: Turn Off the Gas Supply

Turn off the gas supply valve on the gas line leading to the water heater. This is separate from the gas control valve on the heater itself.

Step 2: Turn Off the Cold Water Supply

Close the cold water inlet valve at the top of the heater.

Step 3: Drain Some Water from the Tank

Drain 5-10 gallons from the drain valve to reduce pressure. You do not need to drain the full tank.

Step 4: Disconnect the Gas Line

Use a pipe wrench to disconnect the gas supply line from the inlet fitting on the gas valve. Have a towel ready for any residual gas or condensation.

Step 5: Disconnect the Thermocouple and Pilot Tube

The thermocouple and pilot supply tube connect to the gas valve with small fittings. Unscrew these carefully with adjustable pliers - they are small and can be damaged if forced.

Step 6: Disconnect the Manifold Tube

The manifold tube connects the gas valve to the main burner. Unscrew this fitting and set it aside.

Step 7: Remove the Old Gas Valve

The gas valve threads into the tank at the water temperature sensing port. Use a pipe wrench to unscrew it counterclockwise. It may be tight - apply steady pressure.

Step 8: Install the New Gas Valve

1. Wrap the threads of the new valve with PTFE tape rated for gas
2. Thread the new valve into the tank port by hand
3. Tighten with a pipe wrench until snug - position the valve so the dial faces outward
4. Reconnect the manifold tube, pilot tube, and thermocouple in reverse order
5. Reconnect the gas supply line

Step 9: Check for Gas Leaks

Turn the gas supply back on. Apply soapy water or gas leak detector solution to every connection you made. Bubbles indicate a leak - tighten the fitting and recheck. Do not proceed until all connections are leak-free.

Step 10: Relight the Pilot and Test

1. Follow the pilot lighting procedure on the label of the new valve
2. Set the temperature dial to your desired setting
3. Wait 30-60 minutes and test hot water at a faucet
4. Check the status light - one flash indicates normal operation

When to Call a Professional

• You are not comfortable working with gas lines
• You cannot find a compatible replacement valve for your model
• Gas leaks persist after tightening connections
• Your local code requires a licensed plumber for gas appliance repairs

Summary
