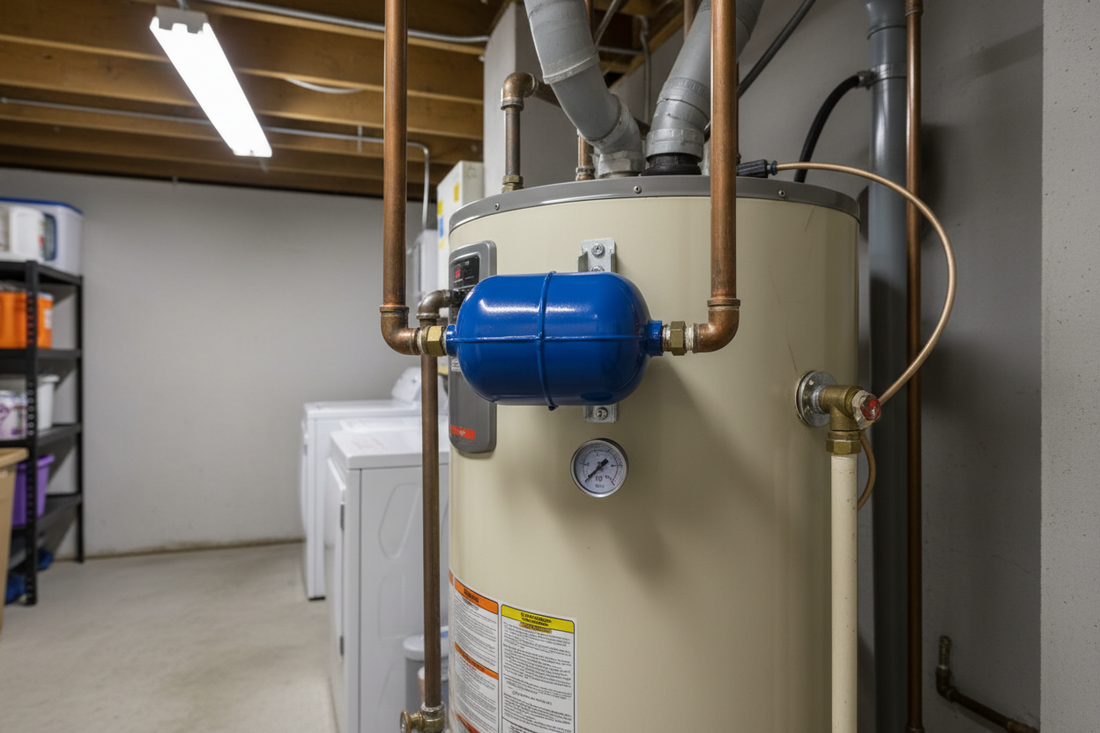

Water Heater Expansion Tank

If your plumber has recommended a thermal expansion tank, or your T&P relief valve keeps dripping, you may need one. Expansion tanks are a simple but important component in closed plumbing systems - and in many areas they are now required by code. This guide explains what they do, whether you need one, and how they work.

What Is a Water Heater Expansion Tank?

A thermal expansion tank is a small pressurized tank - typically 2 to 5 gallons - installed on the cold water supply line near your water heater. It absorbs the extra water volume that is created when your water heater heats cold water.

Here is the physics: water expands when heated. A 50-gallon water heater can produce an extra half gallon of water volume when heating from cold to 120 degrees F. In an open plumbing system, this extra water simply pushes back into the municipal supply. But in a closed system, it has nowhere to go - and pressure builds up.

What Is a Closed Plumbing System?

A closed plumbing system is one where water cannot flow back into the municipal supply. This happens when a check valve, pressure reducing valve (PRV), or backflow preventer is installed on the main water line. These devices are increasingly common - and they turn your home's plumbing into a closed system.

If your home has any of these devices, you have a closed system and likely need an expansion tank.

Why Does Thermal Expansion Matter?

Without an expansion tank in a closed system, the extra water volume from heating has nowhere to go. This causes:

• Pressure spikes that stress pipes, fittings, and appliances
• T&P valve dripping - the relief valve opens to release the excess pressure, which is a sign the system needs an expansion tank
• Shortened appliance life - dishwashers, washing machines, and water heaters wear out faster under repeated pressure spikes
• Code violations - many jurisdictions now require expansion tanks on all closed systems

Signs You Need an Expansion Tank

• Your T&P relief valve drips periodically, especially after the water heater finishes a heating cycle
• You have a pressure reducing valve, check valve, or backflow preventer on your main line
• Your water pressure fluctuates noticeably
• A plumber or inspector has told you that you need one
• Your local building code requires one (increasingly common)

How an Expansion Tank Works

Inside the expansion tank is a rubber bladder or diaphragm that separates two chambers. One side is connected to your plumbing and fills with water as pressure rises. The other side is pre-charged with air at a set pressure (usually matching your home's water pressure, typically 40-80 PSI).

When the water heater heats water and pressure rises, the extra water compresses into the expansion tank against the air cushion. When you use hot water and pressure drops, the air pushes the water back into the system. The T&P valve never needs to open, and pressure stays stable.

What Size Expansion Tank Do You Need?

When in doubt, go slightly larger - an oversized expansion tank causes no harm.

How to Install an Expansion Tank

Installation involves cutting into the cold water supply line near the water heater and installing a tee fitting, then connecting the expansion tank. The tank can be installed horizontally or vertically.

Key installation steps:

1. Turn off the cold water supply and drain pressure from the system
2. Cut into the cold water supply line near the water heater
3. Install a tee fitting
4. Connect the expansion tank to the tee using a threaded nipple and PTFE tape
5. Check the pre-charge pressure in the tank with a tire gauge - it should match your home's water pressure
6. Restore water supply and check for leaks

Gasoila Yellow PTFE Thread Seal Tape - seal all threaded connections during installation.

Mr. Pen 10-Inch Pipe Wrench - for tightening fittings during installation.

Expansion Tank Maintenance

Expansion tanks require minimal maintenance but should be checked every few years:

• Check the pre-charge pressure annually with a tire gauge - it should match your home's water pressure
• If the tank feels heavy or waterlogged, the bladder has failed and the tank needs replacement
• Most expansion tanks last 5-10 years

When to Call a Professional

While expansion tank installation is within reach of a confident DIYer, call a licensed plumber if:

• You are not sure whether you have a closed system
• You need to cut into copper or CPVC supply lines
• Your local code requires a permit for the installation
• Your T&P valve continues dripping after installing the tank
