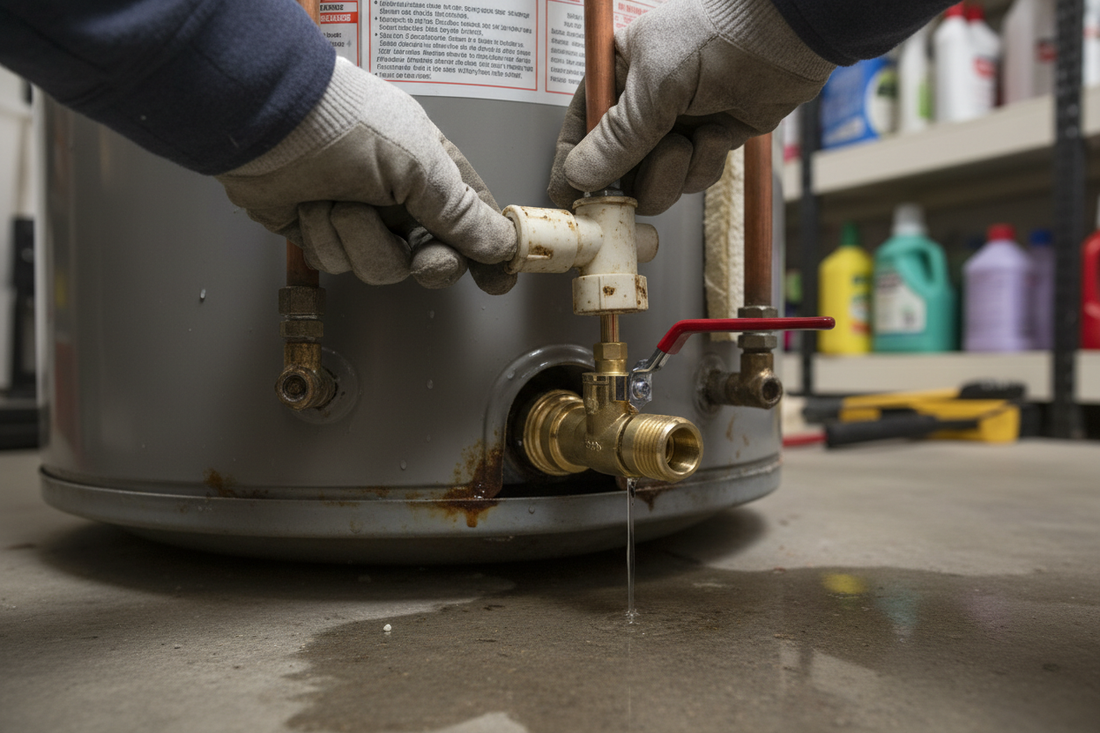

Water Heater Drain Valve Replacement

The drain valve at the bottom of your water heater is used for flushing sediment, draining the tank for repairs, and shutting down the heater. Most water heaters come with a cheap plastic drain valve that can seize, crack, or leak - especially after the first time it is opened. Replacing it with a quality brass ball valve is a smart upgrade that makes future maintenance much easier.

Signs Your Drain Valve Needs Replacement

• The valve leaks or drips after being closed
• The valve is stuck and cannot be opened
• The valve cracked or broke when you tried to open it
• You want to upgrade from a plastic valve to a more reliable brass ball valve

What You Will Need

• Replacement drain valve (3/4 inch hose thread)
• Pipe wrench or channel-lock pliers
• PTFE thread seal tape
• Garden hose and bucket
• Wet/dry vacuum (optional, for residual water)

Mr. Pen 10-Inch Pipe Wrench - for removing the old drain valve and installing the new one.

Gasoila Yellow PTFE Thread Seal Tape - seal the new valve threads for a leak-free installation.

Flexzilla Garden Hose 50ft - for draining the tank before valve replacement.

Rubbermaid 12-Quart Bucket - catch residual water during the swap.

Choosing the Right Replacement Valve

Standard water heater drain valves use a 3/4 inch male hose thread (MHT) fitting. When replacing, you have two options:

• Standard hose bib style: Same as the original, turns like an outdoor faucet. Inexpensive but can seize again over time.
• Brass ball valve: Quarter-turn operation, much more reliable, less likely to seize or leak. Highly recommended upgrade.

Confirm the thread size on your existing valve before purchasing a replacement.

How to Replace the Drain Valve: Step by Step

Step 1: Turn Off the Heater

Electric: Turn off the circuit breaker.
Gas: Turn the gas control knob to PILOT.

Step 2: Turn Off the Cold Water Supply

Close the cold water inlet valve at the top of the water heater.

Step 3: Drain the Tank Completely

If the old valve still opens, connect a garden hose and drain the tank fully. If the valve is stuck or broken and will not open, you have two options:

• Use a wet/dry vacuum to suck water out through the hot water outlet at the top
• Call a plumber - replacing a valve on a full tank is very messy and difficult

Step 4: Open a Hot Water Faucet

Open a hot water faucet somewhere in the house to break the vacuum and allow the tank to drain fully.

Step 5: Remove the Old Drain Valve

Once the tank is empty, use a pipe wrench to turn the old drain valve counterclockwise. It may be very tight - apply steady pressure. If it is plastic and cracked, use pliers carefully to avoid breaking it further inside the tank.

Once the valve is out, inspect the tank threads. If they are damaged, call a plumber.

Step 6: Clean the Threads

Use a wire brush or cloth to clean any debris or old thread tape from the tank threads before installing the new valve.

Step 7: Install the New Drain Valve

1. Wrap the threads of the new valve with 3-4 layers of PTFE tape
2. Thread the new valve into the tank opening by hand - make sure it threads in straight
3. Tighten with a pipe wrench until snug and the valve outlet faces downward or to the side for easy hose connection
4. Do not overtighten - the tank threads are brass and can be damaged

Step 8: Refill the Tank

1. Make sure the new drain valve is fully closed
2. Open the cold water supply valve
3. Keep the hot water faucet open until water flows steadily - this purges air from the tank
4. Close the hot water faucet
5. Check around the new valve for any leaks

Step 9: Restore Power or Gas

Electric: Turn the circuit breaker back on.
Gas: Turn the gas control knob to your desired temperature setting.

What If the Drain Valve Leaks After Installation?

If the new valve drips at the threads, turn off the water supply, drain slightly, and add more PTFE tape before reinstalling. If it leaks from the valve body itself, the valve is defective - replace it.

Pro Tip: Test the New Valve Annually

Open and close the new drain valve briefly once a year during your annual flush. This prevents it from seizing and ensures it will work when you need it.
