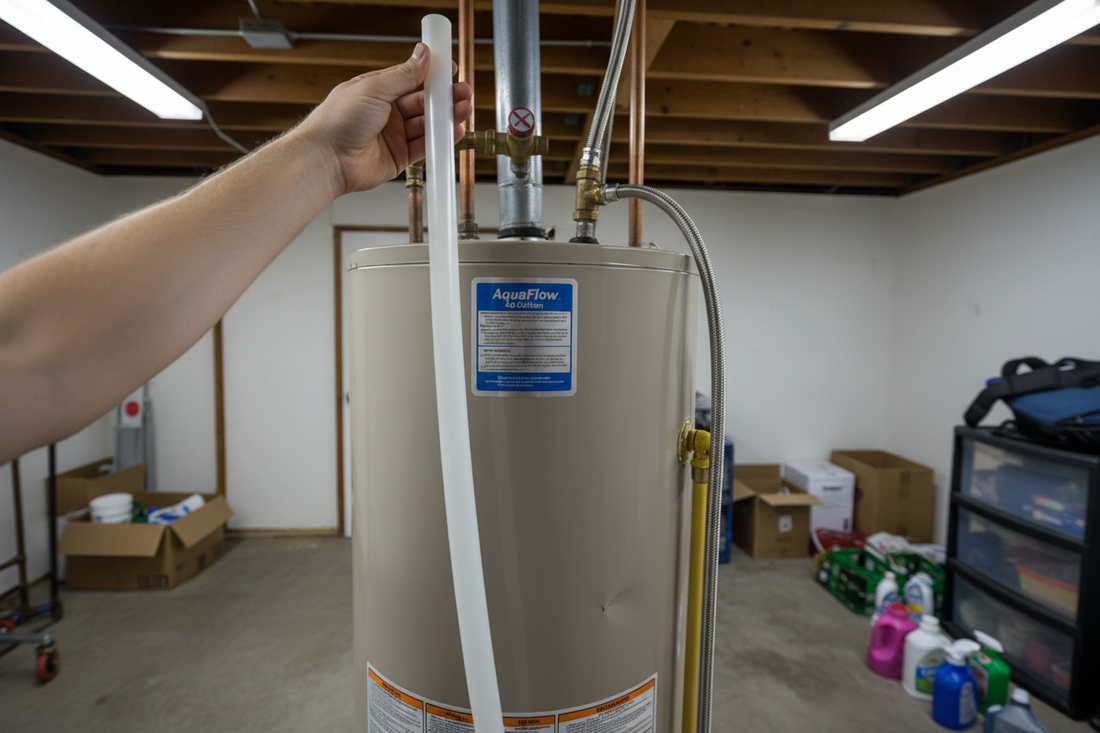

Water Heater Dip Tube Replacement

The dip tube is a simple but critical part of your water heater. When it fails, you get lukewarm water, small plastic flakes in your faucet strainers, and a water heater that seems to have lost half its capacity. The good news is that replacing a dip tube is a straightforward DIY repair that costs very little and takes under an hour.

What Is a Dip Tube?

The dip tube is a long plastic tube that runs from the cold water inlet at the top of the water heater all the way down to near the bottom of the tank. Its job is to direct incoming cold water to the bottom of the tank, where it gets heated before rising to the top as hot water.

Without a functioning dip tube, cold water enters at the top of the tank and mixes directly with the hot water - resulting in lukewarm water that runs out very quickly.

Signs of a Broken Dip Tube

• Hot water is lukewarm or never gets fully hot
• Hot water runs out much faster than it used to
• Small white or gray plastic flakes in faucet aerators, showerheads, or appliance filters
• Water heater is less than 15 years old but performing like it is failing

The plastic flake symptom is the most definitive sign. If you find small plastic pieces in your hot water strainers, your dip tube has broken apart inside the tank.

What You Will Need

• Replacement dip tube (correct length and diameter for your heater)
• Pipe wrench or channel-lock pliers
• PTFE thread seal tape
• Garden hose and bucket
• Flathead screwdriver

AO Smith Dip Tube 3/4 inch x 42 inch - replacement dip tube for most standard water heaters. Check your heater's specifications to confirm the correct length.

Mr. Pen 10-Inch Pipe Wrench - for removing the old dip tube connector.

Gasoila Yellow PTFE Thread Seal Tape - seal the new dip tube threads before installation.

Flexzilla Garden Hose 50ft - for draining the tank before replacement.

Rubbermaid 12-Quart Bucket - catch drained water and inspect for plastic flakes.

How to Replace a Water Heater Dip Tube: Step by Step

Step 1: Turn Off the Heater

Electric: Turn off the circuit breaker.
Gas: Turn the gas control knob to PILOT.

Step 2: Turn Off the Cold Water Supply

Close the cold water inlet valve at the top of the water heater.

Step 3: Drain Some Water from the Tank

Connect a garden hose to the drain valve and drain 5-10 gallons to reduce pressure. You do not need to drain the full tank.

Step 4: Disconnect the Cold Water Inlet Line

The dip tube is located inside the cold water inlet port at the top of the tank - usually labeled with a blue marking or C for cold. Disconnect the cold water supply line from this port.

Step 5: Remove the Old Dip Tube

The dip tube is held in place by a plastic or brass nipple threaded into the cold water inlet port. Use a pipe wrench to unscrew this nipple counterclockwise. Once removed, pull the old dip tube out of the tank.

Inspect the old tube - if it has broken into pieces, some fragments may still be inside the tank. Flush the tank thoroughly to remove any remaining plastic pieces.

Step 6: Flush the Tank to Remove Plastic Fragments

If the old dip tube has disintegrated, open the cold water supply briefly to flush plastic fragments out through the drain valve. Repeat until no more fragments appear.

Step 7: Install the New Dip Tube

1. Wrap the threaded end of the new dip tube nipple with 3-4 layers of PTFE tape
2. Insert the dip tube into the cold water inlet port - the tube should reach nearly to the bottom of the tank
3. Thread the nipple in by hand first, then tighten with a pipe wrench - firm but not overtightened

Step 8: Reconnect and Refill

1. Reconnect the cold water supply line
2. Open the cold water inlet valve
3. Open a hot water faucet to purge air until water flows steadily
4. Close the faucet
5. Restore power or gas to the heater
6. Wait 30-60 minutes and test hot water temperature and duration

After Replacement: Clean Your Aerators and Filters

After replacing the dip tube, clean all faucet aerators, showerhead nozzles, and appliance inlet filters to remove any plastic fragments that may have accumulated. Soak aerators in white vinegar for 30-60 minutes to dissolve mineral deposits along with any plastic debris.

When to Call a Professional

Call a plumber if:

• The inlet nipple is seized and cannot be removed without risking damage to the tank
• You find significant corrosion around the cold water inlet port
• The tank is over 10 years old - a dip tube failure on an old tank may be a sign to consider replacement
