How to Use a Non-Contact Voltage Tester

A non-contact voltage tester (NCV tester) is the single most important safety tool for any home electrical work. It detects live voltage without touching any wires — just hold it near a wire, outlet, or switch and it beeps and lights up if voltage is present. It's the tool that tells you whether it's safe to proceed before you touch anything.

Here's how to use one correctly, what it can and can't detect, and how to interpret its readings.

The Tool: Klein Tools NCVT1P

The Klein Tools NCVT1P Non-Contact Voltage Tester is the standard choice for homeowners and electricians alike. It detects AC voltage from 50–1000V, has both audible (beep) and visual (LED) alerts, and has a built-in flashlight for working in dim spaces. It's compact, reliable, and requires no probe contact with live wires.

How a Non-Contact Voltage Tester Works

An NCV tester detects the electric field that surrounds any wire or conductor carrying AC voltage. When you hold the tip near a live wire, the tester's sensor picks up this field and triggers the alarm — even through wire insulation, outlet covers, and switch plates.

It does not need to touch the wire or make electrical contact. This is what makes it safe — you can check for live voltage before removing any cover plate or touching any wire.

Step-by-Step: How to Use a Non-Contact Voltage Tester

Step 1: Test the Tester First

Before relying on any voltage tester, verify it's working correctly by testing it on a known live source — a working outlet or a lamp that's plugged in and on.

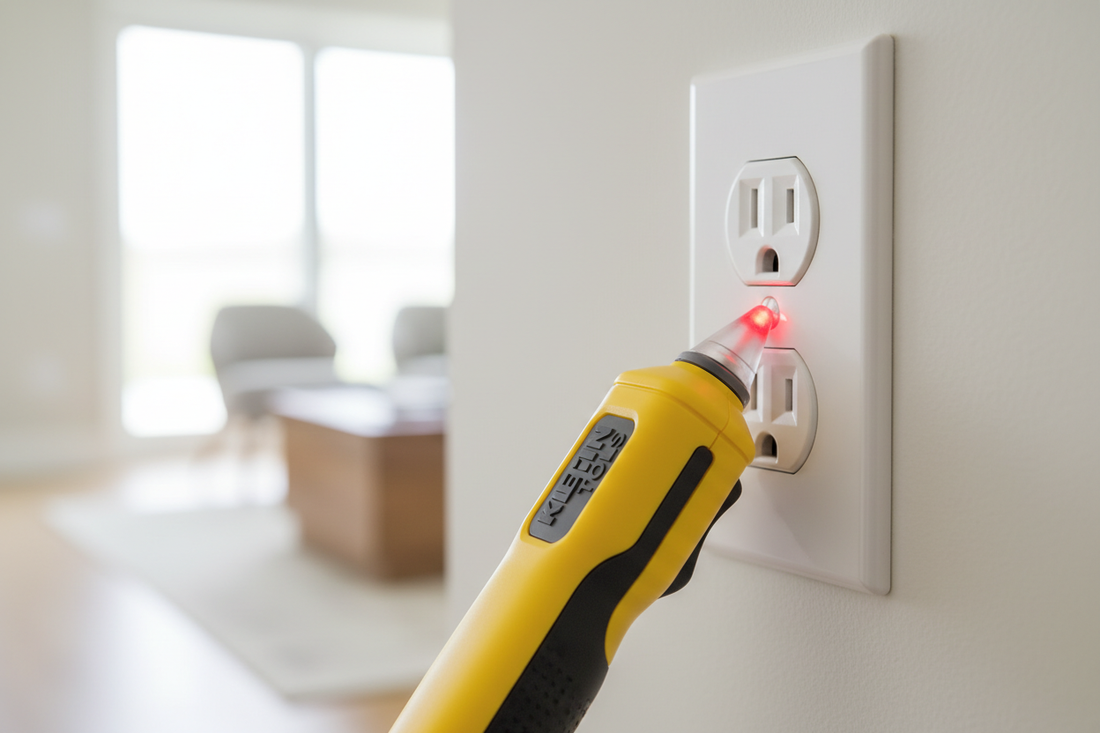

Hold the tip of the tester near the smaller slot of a working outlet (the hot slot)
The tester should beep and light up red (or the indicator color for your model)
Move it to the larger slot (neutral) — it should not alert
If the tester doesn't alert on the known live source, replace the battery before proceeding

This "test the tester" step is critical — a dead battery gives a false sense of safety.

Step 2: Test at the Outlet or Switch

At an outlet:

Hold the tip near the smaller slot (hot) — alert means live voltage present
Hold near the larger slot (neutral) — should not alert on a correctly wired outlet
Hold near the cover plate — if it alerts through the plate, the outlet has power

At a switch:

Hold the tip near the switch body — if it alerts, the circuit has power
After turning off the breaker, hold near the switch again — no alert confirms power is off

Step 3: Test Exposed Wires

When you've removed an outlet or switch from the box and the wires are exposed:

Hold the tip within 1–2 inches of each wire
Alert = live voltage on that wire
No alert = wire is de-energized (safe to touch)
Test every wire individually — in a multi-wire box, some wires may be on different circuits

Step 4: Test Inside the Electrical Panel

The NCV tester is especially valuable at the panel:

Hold near each breaker to detect which circuits are live
Hold near the service entrance wires at the top — these will always alert, even with the main breaker off (they are always live)
After turning off a specific breaker, hold near the wires in the outlet or switch box to confirm that circuit is de-energized

Important: Never touch the service entrance wires at the top of the panel, even if you've turned off the main breaker. The NCV tester will confirm they're always live.

Limitations of a Non-Contact Voltage Tester

Understanding what an NCV tester cannot do is just as important as knowing what it can do:

It cannot measure voltage level. It only tells you whether voltage is present — not whether it's 12V or 120V. Use a multimeter to measure exact voltage.
It can give false negatives near shielded cables. Some cables (especially coaxial or shielded cables) block the electric field. Always use additional verification methods when working near shielded wiring.
It can give false positives near strong electromagnetic fields. Fluorescent lights, motors, and other high-EMF sources can trigger the tester even without live voltage nearby. If you get an unexpected alert, move away from potential EMF sources and retest.
It detects AC voltage only. It will not detect DC voltage (batteries, solar panels, low-voltage lighting systems).
It cannot confirm a wire is safe to touch if it's a neutral wire. A neutral wire normally reads 0V but can become energized under certain fault conditions. Always treat all wires as potentially live until confirmed otherwise.

The Two-Step Safety Rule

Professional electricians follow a two-step rule before touching any wire:

Turn off the breaker for the circuit you're working on
Verify with the NCV tester that the wires are de-energized

Never skip step 2. Breakers can be mislabeled, circuits can be on different breakers than expected, and multi-wire branch circuits can leave some wires live even after one breaker is off. The tester is your confirmation that it's actually safe to proceed.

Common Uses for a Non-Contact Voltage Tester

Confirming power is off before replacing an outlet, switch, or fixture
Identifying which breaker controls a specific circuit (turn breakers off one at a time and test)
Checking if a wire inside a wall is live before drilling or cutting
Verifying the service entrance wires in the panel are always live (they are)
Checking outdoor outlets and extension cords for live voltage
Testing lamp cords and appliance cords for damage

Frequently Asked Questions

How close does the tester need to be to the wire?

The Klein Tools NCVT1P detects voltage within about 1–2 inches of the wire through insulation. For wires inside walls, it may detect voltage through drywall if the wire is close to the surface, but this is not reliable — use it for exposed wires and outlet/switch testing.

Why does my tester beep near a neutral wire?

A neutral wire can carry induced voltage from nearby hot wires, especially in conduit or cable bundles. This can trigger the tester even though the neutral isn't directly energized. If you're unsure, use a multimeter to measure the actual voltage on the wire.

Can I use a non-contact voltage tester to find wires in walls?

To a limited extent — the tester can detect live wires close to the surface of drywall. However, it's not reliable for deep wires or wires with shielding. For wall scanning, use a dedicated stud/wire finder tool.

My tester doesn't beep after turning off the breaker — is it safe?

No alert after turning off the breaker is a good sign — but always test the tester on a known live source first to confirm it's working. If the battery is dead, the tester won't alert even on live wires. Replace the battery regularly and always verify the tester works before relying on it.

Quick Reference: What the Tester Tells You

Tester Response	What It Means	What to Do
Beeps + lights up	AC voltage detected — wire or outlet is live	Do not touch — turn off the breaker first
No response	No AC voltage detected	Verify tester works on known live source, then proceed carefully
Beeps near service entrance wires	Always live — even with main breaker off	Never touch these wires
Unexpected beep near neutral	Induced voltage or fault condition	Verify with multimeter before proceeding

The Klein Tools NCVT1P costs less than $20 and is the single most important tool you can own for home electrical safety. Use it every time, without exception, before touching any wire or electrical component.
