How to Use a Multimeter Correctly

A multimeter is the Swiss Army knife of electrical testing — it measures voltage, current, resistance, continuity, and more. Whether you're troubleshooting a dead outlet, testing a battery, or diagnosing a car electrical problem, knowing how to use a multimeter correctly is an invaluable skill. Here's a complete guide.

What Can a Multimeter Measure?

Voltage (V): AC voltage (household circuits) and DC voltage (batteries, electronics)
Current (A): Amperage flowing through a circuit
Resistance (Ω): Ohms — how much a component resists current flow
Continuity: Whether a circuit is complete (beeps if connected)
Diode test: Checks if a diode is functioning

Recommended Multimeter

The AstroAI Digital Multimeter Tester 2000 Counts measures DC/AC voltage, current, resistance, continuity, and diode — accurate, easy to read, and perfect for home and automotive use. Check it on Amazon →

Understanding the Multimeter: Key Parts

Display: Shows the measurement reading
Dial/selector: Rotary switch to select measurement type and range
COM port (black): Common/negative terminal — always connect the black probe here
VΩmA port (red): For voltage, resistance, and milliamp measurements
10A port (red): For high-current measurements only
Probes: Red (positive) and black (negative) test leads

Probe Connection Rule

Always: Black probe → COM port. Red probe → VΩmA port (for most measurements). This never changes regardless of what you're measuring.

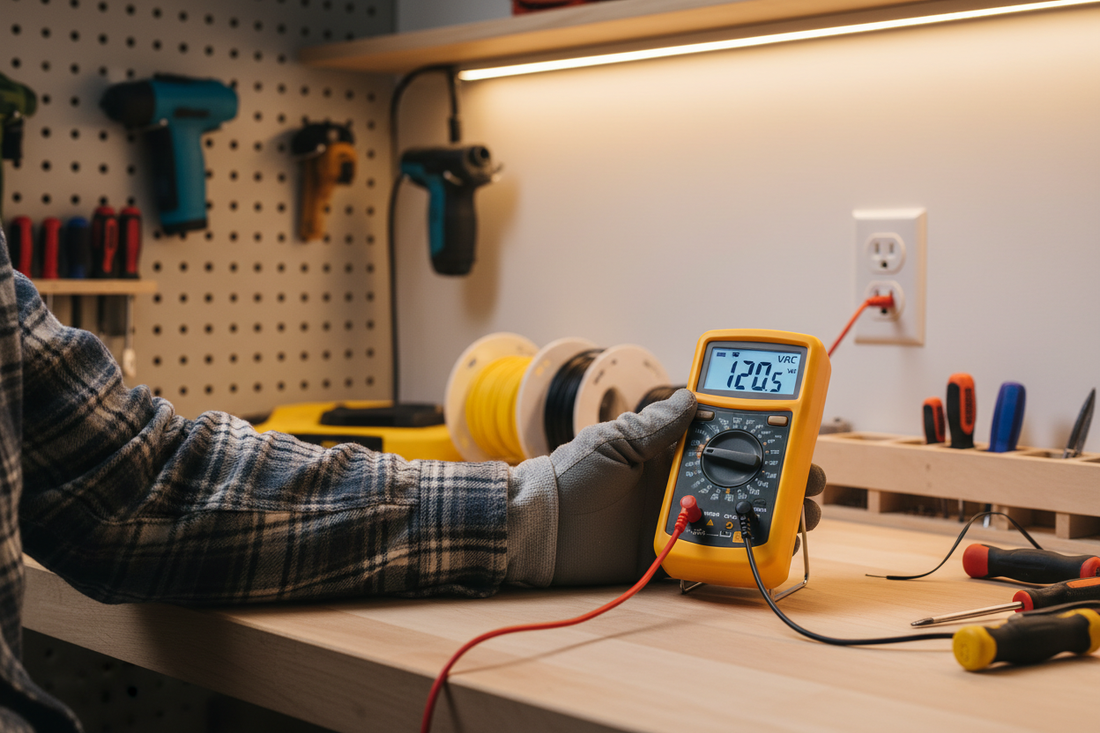

How to Measure AC Voltage (Household Outlets)

Insert black probe into COM, red probe into VΩmA.
Turn the dial to VAC (AC Voltage) — select a range above the expected voltage (e.g., 200V or 750V for household 120V).
Insert the black probe into the larger (neutral) slot of the outlet.
Insert the red probe into the smaller (hot) slot.
Read the display — a working 120V outlet should read approximately 110–125V.
Remove probes and turn the dial to OFF when done.

How to Measure DC Voltage (Batteries)

Turn the dial to VDC (DC Voltage) and select a range above the expected voltage (e.g., 20V for a 12V car battery).
Touch the black probe to the negative terminal (−), red probe to the positive terminal (+).
Read the display. A fully charged 12V car battery reads 12.6V or higher.

How to Test Continuity

Continuity testing checks if a circuit is complete — useful for testing fuses, switches, and wire runs.

Turn the dial to the continuity symbol (looks like a sound wave or diode symbol with a speaker icon).
Turn off power to the circuit before testing continuity.
Touch the probes to both ends of the component or wire.
Beeps: Circuit is complete (continuity present).
No beep: Circuit is broken (open circuit — blown fuse, broken wire, faulty switch).

How to Measure Resistance

Turn off power to the circuit and discharge any capacitors.
Turn the dial to Ω (Ohms) and select an appropriate range.
Touch the probes to both ends of the component.
Read the resistance value on the display.

Reading the Display

OL or 1: Overload — the reading exceeds the selected range. Switch to a higher range.
Negative reading: Probes are reversed. Swap red and black.
0.00: Reading is below the range minimum. Switch to a lower range.

Safety Rules

Never measure current (amps) on a live circuit without the correct setup — it can blow the fuse or damage the meter
Always start with the highest range and work down
Never touch the metal probe tips while measuring live voltage
Turn the dial to OFF when finished to preserve battery life
Check probe insulation for cracks before use

Common Mistakes to Avoid

Wrong probe port (red in 10A port when measuring voltage)
Wrong range selected (causes OL reading)
Measuring resistance on a live circuit (damages the meter)
Not turning off the meter after use (drains battery)
Touching probe tips while measuring live voltage
