How to Tile a Shower Floor (Waterproofing, Slope, and Installation Guide)

Tiling a shower floor is more demanding than tiling a regular bathroom floor — it requires proper waterproofing, a slope toward the drain, and materials that can handle constant moisture. Done correctly, a tiled shower floor lasts for decades. Done incorrectly, it leaks, grows mold, and causes serious structural damage. This guide covers everything you need to know.

What Makes Shower Floor Tiling Different

• Waterproofing is non-negotiable — the shower floor must be fully waterproofed before tiling
• Slope to the drain — the floor must slope toward the drain (typically 1/4 inch per foot) so water drains completely
• Smaller tiles work better — mosaic and small-format tiles conform to the slope better than large tiles
• Grout must be sealed — shower grout is constantly wet and must be sealed to prevent mold and moisture penetration

What You'll Need

• Tile Leveling System
• Professional Gel Knee Pads
• Grout Float
• AQUA-X Grout Sealer
• Waterproofing membrane (RedGard or similar)
• Shower mortar bed or pre-sloped shower pan liner
• Tile adhesive rated for wet areas
• Mold-resistant grout
• Silicone caulk (for corners and transitions)

How to Tile a Shower Floor: Step-by-Step

Phase 1: Waterproofing

Step 1: Install the shower pan liner or mortar bed.
The shower floor must have a waterproof base. Options include a pre-formed shower pan liner (CPE or PVC membrane) or a traditional mortar bed sloped to the drain. The mortar bed method gives more flexibility for custom shower sizes.

Step 2: Apply waterproofing membrane.
Apply a liquid waterproofing membrane (such as RedGard) over the shower floor and up the walls at least 6 inches. Pay special attention to corners and the drain area — these are the most common leak points. Apply two coats and allow to cure fully.

Step 3: Test the waterproofing.
Plug the drain and fill the shower floor with water to a depth of 2–3 inches. Leave for 24 hours and check for any drop in water level. Fix any leaks before tiling.

Phase 2: Tile Installation

Step 4: Plan the layout around the drain.
Center your tile layout on the drain. For mosaic tiles on mesh backing, plan the layout so the drain falls in the center of a tile or on a grout line. For individual tiles, plan cuts around the drain carefully.

Step 5: Apply wet-area tile adhesive.
Use a tile adhesive specifically rated for wet areas and shower applications. Apply with a notched trowel and back-butter each tile.

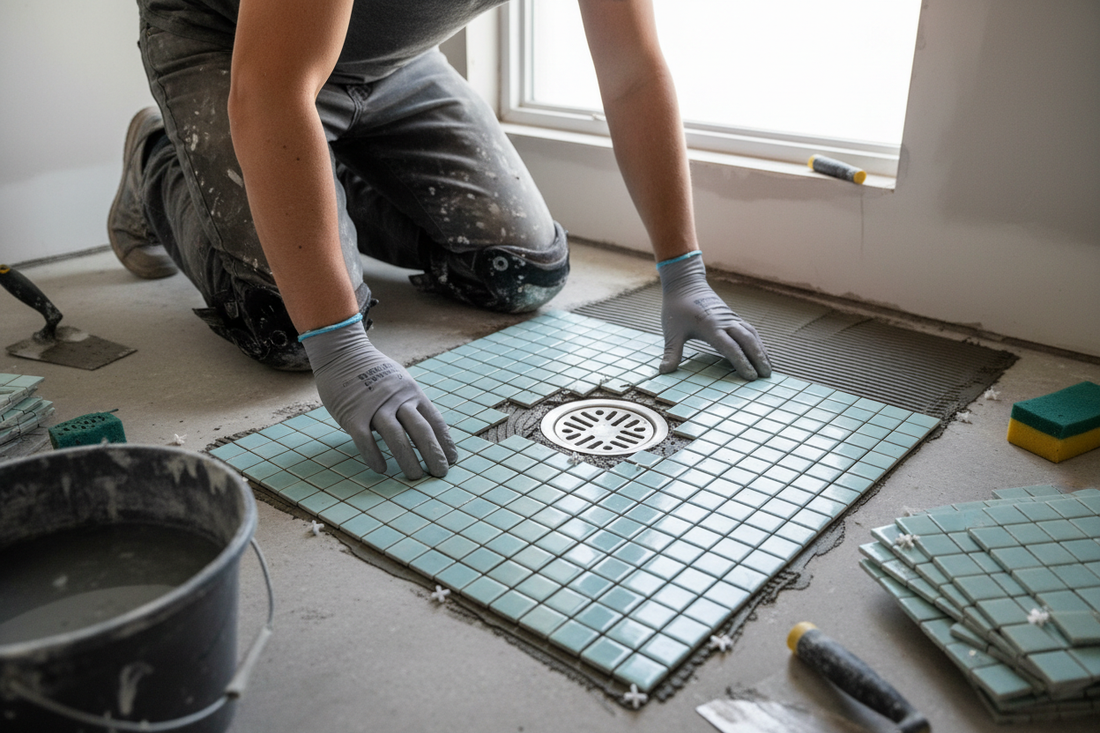

Step 6: Set tiles working outward from the drain.
Start at the drain and work outward. Use tile leveling clips between tiles to maintain consistent spacing. The slope is already built into the mortar bed — the tiles should follow it naturally.

Step 7: Cut tiles around the drain.
Cut tiles to fit around the drain flange. Leave a small gap between the tile and the drain body — the drain cover will overlap this gap.

Step 8: Allow adhesive to cure.
Allow 24–48 hours before grouting. Shower tile adhesive needs longer to cure than standard floor adhesive.

Phase 3: Grouting and Sealing

Step 9: Apply mold-resistant grout.
Apply grout with a grout float, pressing firmly into all joints. Wipe excess with a barely damp sponge. Allow to cure 48–72 hours.

Step 10: Caulk all corners.
Fill all inside corners (where floor meets wall) with flexible silicone caulk — never grout. These corners experience movement and grout will always crack there.

Step 11: Seal the grout.
Once fully cured, apply AQUA-X Grout Sealer to all grout lines. In a shower, sealing is essential — reseal every 6–12 months.

Step 12: Do not use the shower for 72 hours.
Allow the full cure time before using the shower. Getting the grout wet too early causes cracking and color variation.

Frequently Asked Questions

What tiles are best for a shower floor?
Mosaic tiles (1x1, 2x2 inch) are the most practical for shower floors — they conform to the slope, have more grout lines for traction, and are easier to cut around the drain. For larger tiles, use a pre-sloped shower pan that eliminates the need for a custom mortar slope.

Do I need to waterproof under shower floor tile?
Yes — always. The tile and grout are not waterproof on their own. A waterproofing membrane under the tile is essential to prevent water from reaching the subfloor and causing structural damage and mold.

How do I create the slope toward the drain?
The slope is created in the mortar bed or shower pan, not in the tile layer. A traditional mortar bed is sloped at 1/4 inch per foot toward the drain during installation. Pre-sloped shower pans are also available and eliminate the need to create the slope manually.

How often should I seal shower floor grout?
Every 6–12 months in a regularly used shower. Test by dropping water on the grout — if it soaks in instead of beading, it's time to reseal.
