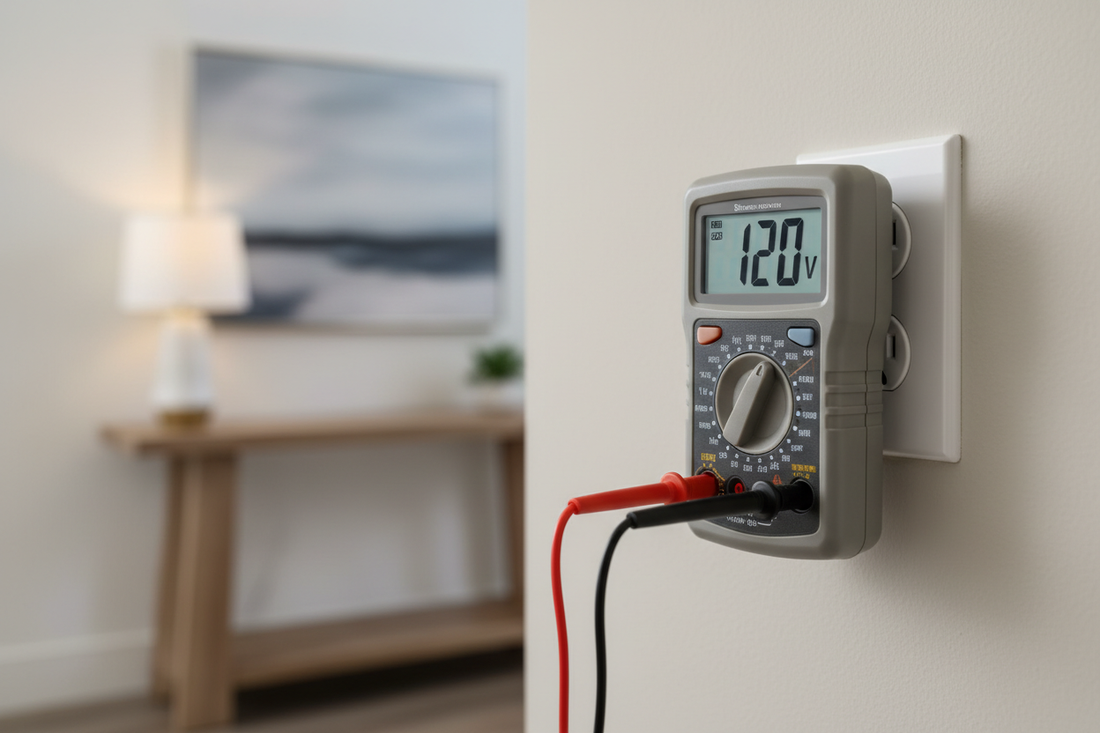

A multimeter is the most precise tool for diagnosing outlet problems. While an outlet tester gives you a quick pass/fail reading, a multimeter tells you the exact voltage, identifies specific faults, and helps you trace problems back to their source. Here's how to use one correctly.

What You'll Need

• AstroAI Digital Multimeter — measures AC voltage, DC voltage, resistance, and continuity. Everything you need for outlet testing and electrical diagnosis.
• Klein Tools RT250 GFCI Outlet Tester — use this first for a quick wiring fault check before going deeper with the multimeter.

Safety First

Testing a live outlet with a multimeter is safe when done correctly — but follow these rules:

• Use a multimeter with CAT II or CAT III safety rating for household electrical work
• Inspect the test leads for cracked or damaged insulation before use — replace if damaged
• Hold the probes by the insulated handles only — never touch the metal probe tips
• Set the multimeter to the correct range before inserting probes
• Keep one hand behind your back or in your pocket when probing — this prevents current from passing across your chest if you accidentally contact a live terminal

Step-by-Step: How to Test an Outlet with a Multimeter

Step 1: Set the Multimeter to AC Voltage

Turn the dial to VAC (AC Voltage). If your multimeter has manual ranges, select 200V AC — this covers the 120V household voltage range. If it's auto-ranging, simply select VAC.

Step 2: Test Hot to Neutral (Main Voltage Test)

1. Insert the black probe into the larger slot (neutral — left side)
2. Insert the red probe into the smaller slot (hot — right side)
3. Read the display

Normal reading: 115–125V AC

• 115–125V: Correct — the outlet has proper voltage between hot and neutral
• 0V: No power — check the breaker and any GFCI outlets on the circuit
• Below 110V: Low voltage — possible loose connection or utility supply issue
• Above 130V: High voltage — possible utility supply problem; call your utility company

Step 3: Test Hot to Ground

1. Keep the red probe in the smaller slot (hot)
2. Move the black probe to the round hole (ground)
3. Read the display

Normal reading: 115–125V AC

• 115–125V: Ground is connected and at the correct potential
• 0V: Open ground — the ground wire is disconnected or missing

Step 4: Test Neutral to Ground

1. Insert the black probe into the larger slot (neutral)
2. Insert the red probe into the round hole (ground)
3. Read the display

Normal reading: 0–2V AC

• 0–2V: Correct — neutral and ground are at the same potential (as they should be)
• Above 5V: Elevated neutral-to-ground voltage — indicates a loose neutral connection or a heavily loaded neutral wire. Investigate further.
• 120V: Hot and neutral are reversed — the outlet is wired backwards

Interpreting Your Results

What Each Fault Means and How to Fix It

Open Ground

The ground wire is disconnected at the outlet, at a junction box, or is missing entirely (common in older homes with two-wire wiring). An open ground is a safety issue — it means there's no fault protection path.

Fix: Inspect the outlet wiring and reconnect the ground wire. If there's no ground wire in the box (older home), options include running a new grounded circuit, installing a GFCI outlet (which provides shock protection without a ground wire), or installing a whole-circuit GFCI breaker. See: How to Replace an Electrical Outlet for step-by-step instructions.

Open Neutral

The neutral wire is disconnected somewhere between the outlet and the panel. An open neutral can cause voltage imbalances and erratic behavior in connected devices.

Fix: Inspect the outlet wiring, the upstream outlet on the same circuit, and any junction boxes. Reconnect the neutral wire wherever it's loose or disconnected.

Hot-Neutral Reversed

The black (hot) and white (neutral) wires are connected to the wrong terminals. The outlet works but is a shock hazard — the shell of the socket is energized instead of the center tab.

Fix: Turn off the breaker, pull the outlet out, and swap the wires to the correct terminals (black to brass, white to silver). See: How to Replace an Electrical Outlet for step-by-step instructions.

Low Voltage

Voltage consistently below 110V indicates a loose connection increasing resistance in the circuit, or a utility supply problem. Measure at multiple outlets — if all outlets in the home show low voltage, call your utility company. If only one circuit is affected, inspect the connections at the panel and along the circuit.

Testing a GFCI Outlet with a Multimeter

For GFCI outlets, perform the same three tests above. Additionally:

• Press the TEST button — all three readings should drop to 0V (power cut)
• Press RESET — readings should return to normal
• If pressing TEST doesn't cut power, the GFCI has lost its protective function and must be replaced

For a faster GFCI-specific test, use the Klein Tools RT250 — it tests GFCI function with one button press and displays wiring faults clearly.

Frequently Asked Questions

What should an outlet read on a multimeter?

Hot to neutral: 115–125V. Hot to ground: 115–125V. Neutral to ground: 0–2V. Any reading significantly outside these ranges indicates a fault.

Can I test an outlet with a multimeter without removing it from the wall?

Yes — all three tests described above are performed by inserting the probes into the outlet slots and ground hole. You don't need to remove the outlet from the wall for basic voltage testing.

What does 0V between hot and neutral mean?

No power at the outlet. Check the circuit breaker for that circuit and reset any tripped GFCI outlets on the same circuit. If the breaker is on and no GFCI is tripped, the problem is a loose wire somewhere in the circuit.

Is it safe to test a live outlet with a multimeter?

Yes, when done correctly. Use a multimeter with CAT II or CAT III safety rating, inspect the leads for damage, hold probes by the insulated handles only, and never touch the metal probe tips. The AstroAI multimeter is CAT III rated and safe for household electrical testing.

Quick Test Summary

1. Set multimeter to VAC
2. Hot (small slot) to Neutral (large slot) — should read 115–125V
3. Hot (small slot) to Ground (round hole) — should read 115–125V
4. Neutral (large slot) to Ground (round hole) — should read 0–2V
5. Compare results to the fault table above
6. Fix the identified fault or call an electrician

The AstroAI Digital Multimeter gives you precise voltage readings that tell you exactly what's wrong — pair it with the Klein Tools RT250 outlet tester for the fastest and most complete outlet diagnosis toolkit available to a homeowner.
