How to Replace Water Heater Anode Rod

The anode rod is the single most important part for extending the life of your water heater. It is a sacrificial metal rod that attracts corrosion so the tank lining does not rust. When it is depleted, the tank itself starts to corrode from the inside - and once that happens, the only fix is a full replacement.

Replacing the anode rod every 2-3 years is one of the best investments you can make in your water heater. This guide shows you exactly how to do it.

What Is an Anode Rod and Why Does It Matter?

An anode rod is typically made of magnesium, aluminum, or zinc wrapped around a steel core. It works through a process called electrolytic action - it corrodes slowly over time so the steel tank does not. When the rod is fully consumed, there is nothing left to protect the tank.

Signs your anode rod needs replacing:

• Hot water smells like rotten eggs (sulfur smell)
• Rusty or discolored hot water
• Water heater is 3 or more years old and the rod has never been checked
• Rod is less than half an inch thick or heavily coated in calcium

What You Will Need

• 1-1/16 inch socket wrench (most anode rods require this size)
• Breaker bar or impact wrench (anode rods can be very tight)
• PTFE thread seal tape
• Garden hose and bucket
• Replacement anode rod

RV Water Heater Anode Rod 2-Pack - premium magnesium anode rod, 9.25 inch x 3/4 inch NPT, 2-year warranty, fits most water heaters including Suburban RV models. Buy two so you always have a spare.

Gasoila Yellow PTFE Thread Seal Tape - professional-grade tape for sealing the anode rod threads before installation.

Mr. Pen 10-Inch Pipe Wrench - sturdy and reliable for loosening the old anode rod.

How to Replace the Anode Rod: Step by Step

Step 1: Turn Off the Heater

Electric: Turn off the circuit breaker. Gas: Turn the gas control knob to PILOT.

Step 2: Turn Off the Cold Water Supply

Close the cold water inlet valve at the top of the heater.

Step 3: Drain Some Water from the Tank

Connect a garden hose to the drain valve and drain 5-10 gallons to reduce pressure inside the tank. You do not need to drain the full tank.

Flexzilla Garden Hose 50ft - flexible and easy to connect to the drain valve.

Rubbermaid 12-Quart Bucket - for catching the drained water.

Step 4: Locate the Anode Rod

The anode rod is usually located on top of the water heater, under a plastic cap, or it may be accessible through the hot water outlet port. Check your owner's manual if you are unsure. On some models it is hidden under sheet metal that needs to be removed.

Step 5: Remove the Old Anode Rod

Use a 1-1/16 inch socket with a breaker bar or impact wrench to unscrew the anode rod counterclockwise. It may be very tight - this is normal, especially if it has never been removed. Apply steady pressure and it will break free.

Once loose, unscrew it by hand and pull it straight out. The rod may be in sections if it is a flexible anode rod.

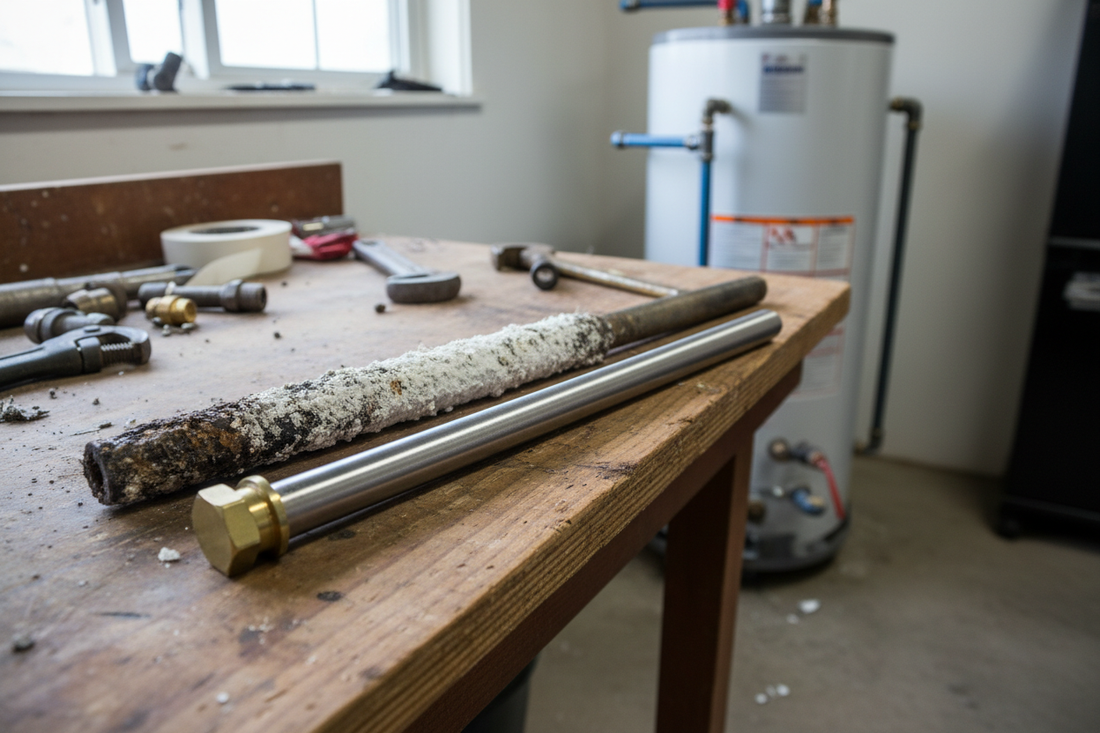

Step 6: Inspect the Old Rod

Look at the condition of the old rod:

• Less than 1/2 inch thick - needs replacement (you are doing the right thing)
• Heavily coated in white calcium deposits - replace and consider a water softener
• Still mostly intact - it may have a little life left, but replace it anyway for peace of mind

Step 7: Wrap the New Rod with PTFE Tape

Wrap the threaded end of the new anode rod with 3-4 layers of PTFE thread seal tape. This ensures a watertight seal and makes future removal easier.

Gasoila Yellow PTFE Thread Seal Tape - professional-grade, leak-proof seal.

Step 8: Install the New Anode Rod

Insert the new rod into the opening and hand-tighten it first. Then use your socket wrench to tighten it firmly - about 1/8 to 1/4 turn past hand-tight. Do not overtighten.

Step 9: Refill and Restore Power

1. Close the drain valve
2. Turn the cold water supply back on
3. Open a hot water faucet to purge air until water flows steadily
4. Close the faucet
5. Restore power or gas to the heater

How Often Should You Replace the Anode Rod?

Check the rod annually when you flush the tank. Replace it when it is less than 1/2 inch thick.

When to Call a Professional

Call a plumber if the anode rod port is completely seized and cannot be removed, or if you find the tank lining is already corroded when you remove the rod.
