How to Replace a Dimmer Switch

Replacing a dimmer switch is one of the most straightforward home electrical projects. Whether you're upgrading to an LED-compatible dimmer, replacing a failed switch, or changing the style, the job takes about 20 minutes and requires only basic tools. Here's how to do it correctly for both single-pole and 3-way configurations.

What You'll Need

• ELEGRP LED Dimmer Switch (6-Pack) — rated for 300W dimmable LED/CFL and 600W incandescent. Works as single-pole or 3-way. Includes wall plate. UL listed. Matte white finish.
• Klein Tools NCVT1P Non-Contact Voltage Tester — confirm power is off before touching any wiring.
• WGGE Wire Stripper — strip wire ends if needed for new connections.
• Flathead and Phillips screwdrivers
• Electrical tape
• Smartphone (to photograph existing wiring before disconnecting)

Single-Pole vs. 3-Way: Know What You Have

Before buying a replacement, determine whether your dimmer is single-pole or 3-way:

• Single-pole: One switch controls the light from one location. The switch box has 2 wires connecting to the dimmer (plus a ground). The switch does not have a common terminal marked differently from the others.
• 3-way: Two switches control the same light from two locations (e.g., top and bottom of stairs). The switch box has 3 wires connecting to the dimmer (plus a ground) — one common wire and two traveler wires.

The ELEGRP dimmer works in both configurations — the wiring diagram in the box covers both setups.

Step-by-Step: How to Replace a Single-Pole Dimmer Switch

Step 1: Turn Off Power

Turn off the breaker for that circuit. Use your voltage tester at the switch to confirm power is off — hold it near the switch body and near the wires once the cover plate is removed.

Step 2: Remove the Old Dimmer

1. Remove the wall plate (usually one center screw)
2. Unscrew the two mounting screws holding the dimmer to the electrical box
3. Carefully pull the dimmer out of the box — the wires will still be attached
4. Take a photo of the wiring before disconnecting anything
5. Note the wire colors connected to each terminal
6. Disconnect the wires: unscrew terminal screws or pull wires from push-in connectors
7. If the dimmer has a green ground wire (pigtail), unscrew it from the ground wire or ground screw in the box

Step 3: Prepare the Wires

• Inspect the wire ends — if they're nicked, corroded, or too short, use the wire stripper to strip fresh ends (about 3/4 inch)
• Straighten the wire ends so they'll seat cleanly in the new terminals

Step 4: Connect the New Dimmer

For a single-pole dimmer, the two hot wires connect to the two main terminals — polarity doesn't matter for the hot wires on a standard single-pole dimmer:

• Connect the black wire to one terminal screw and tighten firmly
• Connect the other black wire (or white wire marked with black tape) to the other terminal screw
• Connect the green ground wire from the dimmer to the bare copper ground wire in the box (twist together and secure with a wire nut, or connect to the ground screw in the box)

Neutral wire: Some modern dimmers (including smart dimmers) require a neutral wire (white). The ELEGRP dimmer does not require a neutral — it works with just the two hot wires and ground. If your replacement dimmer requires a neutral, check whether a white wire is available in the box.

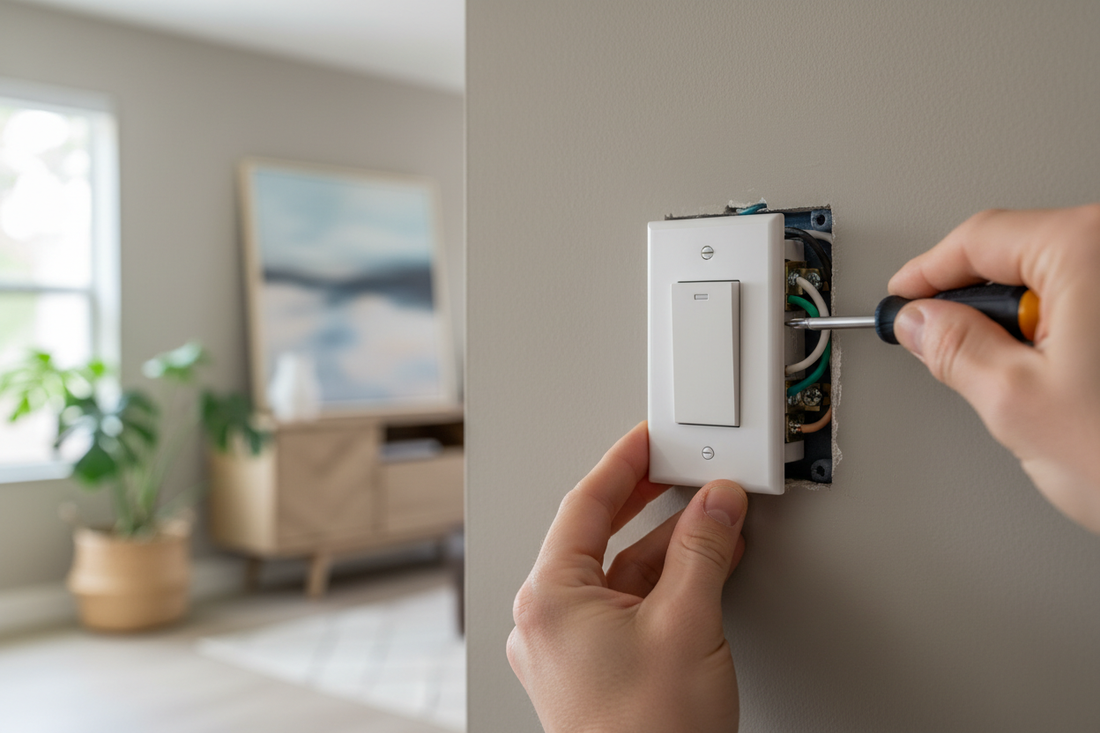

Step 5: Install and Test

1. Tuck the wires carefully into the box — fold them in an accordion pattern to avoid pinching
2. Screw the dimmer to the box with the two mounting screws
3. Attach the wall plate
4. Restore power at the breaker
5. Test the full dimming range — from full brightness down to minimum
6. Adjust the low-end trim screw if needed (small screw on the face of the dimmer) to set the minimum brightness level

3-Way Dimmer Wiring

A 3-way dimmer replaces only one of the two switches in a 3-way circuit — the other switch must be a standard 3-way switch (not a dimmer). The dimmer switch goes at the location you prefer to control brightness from.

3-way wiring has three wires plus ground:

• Common wire (usually black, connected to the black-marked terminal on the old switch) — connects to the COMMON terminal on the new dimmer
• Traveler wires (usually red and black, or two blacks) — connect to the two TRAVELER terminals on the new dimmer
• Ground — connects to the green ground wire on the dimmer

Critical: Identify the common wire correctly before disconnecting. On the old switch, the common terminal is usually a different color (black or darker) than the traveler terminals, or labeled COM. Your photo from Step 2 is essential here.

Choosing the Right Replacement Dimmer

• LED compatibility: Essential if you have LED bulbs. The ELEGRP dimmer is rated for 300W dimmable LED/CFL.
• Load rating: Add up the wattage of all bulbs on the circuit. Stay within the dimmer's maximum rating.
• Neutral wire required? Most standard dimmers don't need a neutral. Smart dimmers often do — check your box for a white wire before buying a smart dimmer.
• Single-pole or 3-way: Match to your existing configuration, or choose a dimmer that works for both.
• Style: Slide, rotary, or paddle — choose what fits your preference and wall plate style.

Frequently Asked Questions

Do I need to turn off the main breaker to replace a dimmer switch?

No — turn off only the breaker for that specific circuit. Use a non-contact voltage tester to confirm power is off at the switch before touching any wires. Never work on a live switch.

Can I replace a dimmer with a regular on/off switch?

Yes — a standard single-pole switch can replace a single-pole dimmer using the same wiring. You'll lose dimming capability but the switch will work normally. For 3-way locations, replace with a standard 3-way switch.

My new dimmer has a green wire but my box has no ground wire — what do I do?

If the box has no ground wire (common in older homes), connect the dimmer's green ground wire to the metal electrical box using the ground screw if present. If there's no ground at all, cap the green wire with a wire nut and tuck it into the box. Note that an ungrounded dimmer is not ideal — consider having an electrician add a ground wire.

How do I know which wire is the common in a 3-way switch?

The common terminal on the old switch is usually a different color (black or bronze) compared to the traveler terminals (brass or silver), or labeled COM. Before removing the old switch, photograph the wiring and note which wire is on the differently-colored terminal — that's your common wire.

Quick Wiring Reference

The ELEGRP LED Dimmer Switch comes in a 6-pack — ideal if you're upgrading multiple dimmers throughout your home at once. Each includes a wall plate and works in single-pole or 3-way configurations without a neutral wire.
