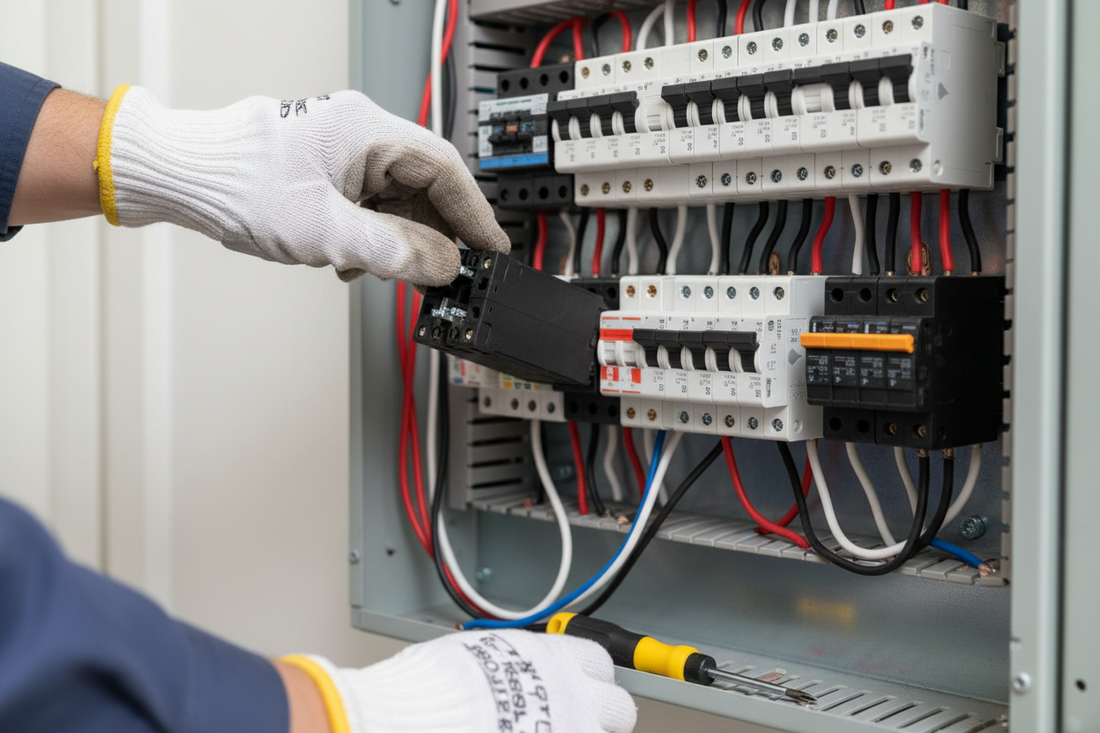

How to Replace a Circuit Breaker

A circuit breaker that trips constantly, won't stay reset, or fails to trip when it should is a breaker that needs to be replaced. While this is a more advanced electrical task than simply resetting a breaker, it's manageable for a confident DIYer — as long as you understand the risks and take the right precautions.

Here's everything you need to know to replace a circuit breaker safely.

Signs You Need to Replace a Circuit Breaker

The breaker trips repeatedly even with minimal load on the circuit
The breaker won't stay in the ON position after resetting
The breaker feels hot or warm to the touch
You see burn marks or smell burning near the breaker
The breaker handle is physically damaged or loose
The breaker is very old (20+ years) and part of a recalled panel brand

Use a digital multimeter to test the breaker's output voltage — a healthy breaker should read ~120V (or ~240V for double-pole). If it reads significantly lower or zero with the breaker on, the breaker itself may be faulty.

Important Safety Warning

Replacing a breaker requires working inside your electrical panel. The main breaker cuts power to all branch circuits — but the service entrance wires at the top of the panel are always live, even with the main breaker off. These wires carry full utility voltage and are extremely dangerous to touch.

Always use a non-contact voltage tester to identify which parts of the panel are energized before reaching in. If you're not comfortable working near live components, hire a licensed electrician.

What You'll Need

Klein Tools NCVT1P Non-Contact Voltage Tester — identify live components before touching anything in the panel.
AstroAI Digital Multimeter — test the old breaker's output and verify the new one is working correctly.
Replacement circuit breaker — must be the exact same brand, type, and amperage as the original. Check your panel's brand (Square D, Eaton, Siemens, Leviton, etc.) and match it precisely. Using the wrong breaker is a fire hazard.
Flathead and Phillips screwdrivers
Needle-nose pliers (optional)
Electrical tape

Step-by-Step: How to Replace a Circuit Breaker

Step 1: Identify the Faulty Breaker

Confirm which breaker needs replacing. Use your multimeter to test voltage output at the breaker's load terminal — with the breaker switched ON, you should read ~120V between the load terminal and the neutral bus. A reading of 0V or significantly less indicates a faulty breaker.

Step 2: Buy the Correct Replacement Breaker

This step is critical. Circuit breakers are brand-specific — a Square D breaker will not fit an Eaton panel, and vice versa. Check:

Panel brand: Printed on the panel door or the main breaker (Square D, Eaton, Siemens, GE, Leviton, etc.)
Breaker amperage: Printed on the breaker handle (15A, 20A, 30A, etc.)
Breaker type: Standard, AFCI, GFCI, or tandem
Pole: Single-pole (120V) or double-pole (240V)

Bring the old breaker to the hardware store if you're unsure, or look up the panel model number online to find compatible breakers.

Step 3: Turn Off the Main Breaker

Flip the main breaker to OFF. This cuts power to all branch circuits in the panel. However, remember: the service entrance wires at the top remain live. Use your non-contact voltage tester to confirm the branch circuit wires are de-energized before proceeding.

Step 4: Turn Off All Branch Breakers

As an extra precaution, flip all other branch breakers to OFF before working. This prevents accidental re-energization and reduces the risk of arc flash if something goes wrong.

Step 5: Remove the Panel Cover

Unscrew the panel cover plate and carefully set it aside. Do not touch the service entrance wires at the top of the panel. Use your voltage tester to double-check that the area you'll be working in is de-energized.

Step 6: Disconnect the Old Breaker

Loosen the screw on the load terminal of the faulty breaker and remove the wire (usually black or red).
Grip the breaker firmly and pull it toward you — it will unclip from the bus bar with a firm tug. Some breakers also have a tab that needs to be pressed.
Set the old breaker aside.

Step 7: Install the New Breaker

With the new breaker in the OFF position, align it with the bus bar slot.
Press it firmly into place until it clicks and seats securely on the bus bar.
Reconnect the wire to the load terminal and tighten the screw firmly — a loose connection is a fire hazard.

Step 8: Restore Power and Test

Replace the panel cover and secure all screws.
Turn the main breaker back ON.
Flip the new breaker to ON.
Use your multimeter to verify ~120V at the outlets on that circuit.
Gradually restore devices to the circuit and confirm the breaker holds.

When to Call an Electrician Instead

You're replacing a double-pole 240V breaker (dryer, HVAC, EV charger)
The panel is old, recalled (Federal Pacific, Zinsco), or in poor condition
You see burn marks, melted insulation, or signs of arcing inside the panel
You can't find a compatible replacement breaker
You're not comfortable working near the live service entrance wires

Frequently Asked Questions

Can I use any brand of breaker as a replacement?

No — breakers are brand-specific and panel-specific. Using an incompatible breaker can cause poor contact with the bus bar, overheating, and fire. Always match the brand, amperage, and type exactly.

How do I know if my breaker is bad or if it's a wiring problem?

Test the breaker's output voltage with a multimeter. If the breaker reads 0V or low voltage with no load on the circuit, the breaker is likely faulty. If it reads correct voltage but trips under load, the issue may be the circuit wiring or a connected device.

How much does it cost to replace a circuit breaker?

A replacement breaker costs $5–$50 depending on type (standard vs. AFCI/GFCI). If you hire an electrician, expect $100–$300 for a single breaker replacement, including labor.

Do I need a permit to replace a circuit breaker?

In most jurisdictions, replacing a like-for-like breaker (same amperage, same type) does not require a permit. However, upgrading to a higher amperage or changing the breaker type may require one. Check with your local building department.

Quick Recap

Confirm the breaker is faulty using a multimeter
Buy the exact replacement (same brand, amperage, and type)
Turn off the main breaker and verify branch wires are de-energized
Remove the panel cover
Disconnect and remove the old breaker
Install the new breaker and reconnect the wire
Replace the cover, restore power, and test with a multimeter

A non-contact voltage tester and a digital multimeter are the two essential tools for this job — don't attempt panel work without them.
