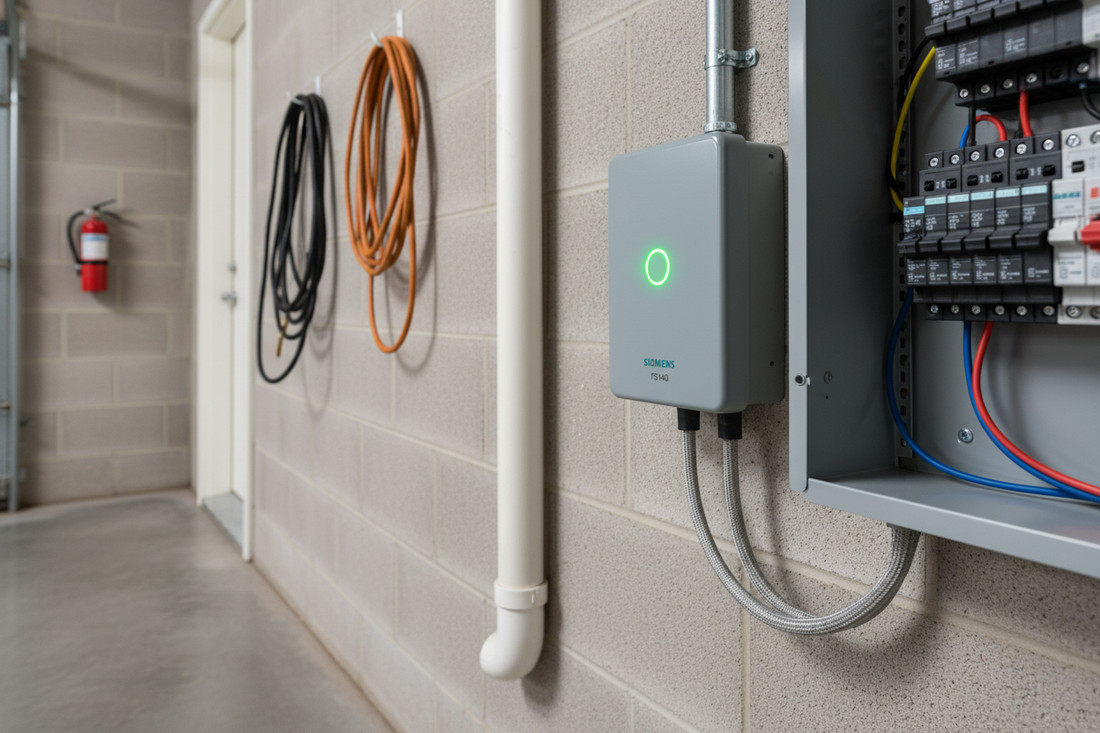

How to Install a Whole House Surge Protector

A whole house surge protector (Type 2 SPD) installs at your main breaker panel and protects every outlet, appliance, and electronic device in your home from voltage spikes. It works alongside individual surge protector strips and is the most comprehensive surge protection available.

Why You Need a Whole House Surge Protector

Voltage surges enter your home from two directions. External surges from lightning strikes and utility switching events can be thousands of volts and travel through your service entrance into every circuit simultaneously. Internal surges are generated when large motors like AC compressors and refrigerators switch on and off, happening dozens of times per day and gradually degrading electronics over time.

A point-of-use surge protector strip only protects plugged-in devices. A whole house surge protector at the panel intercepts surges before they reach any outlet, protecting everything including hardwired appliances like HVAC, water heaters, and dishwashers.

What You'll Need

• Siemens FS140 Whole House Surge Protector - 140kA surge current rating, dual-mode protection, LED status indicator, and audible alarm. Installs in a double-pole breaker slot.
• Klein Tools NCVT1P Non-Contact Voltage Tester - confirm which parts of the panel are de-energized before working inside.
• WGGE Wire Stripper - strip the SPD wire leads for panel connection.
• Double-pole 15A or 20A breaker (if required by your SPD model)
• Flathead and Phillips screwdrivers

Types of Whole House Surge Protectors

What to Look for in a Whole House SPD

• Surge current rating: At least 40kA; 80-140kA recommended
• Clamping voltage: 400V or less (UL 1449 listed)
• Status indicator: LED or audible alarm showing protection status
• UL 1449 listed: Required for safety
• Connected equipment warranty: Quality SPDs include $25,000-100,000 coverage

Step-by-Step: How to Install a Type 2 Whole House Surge Protector

Safety note: The service entrance wires at the top of your panel are ALWAYS live, even with the main breaker off. Always verify with your voltage tester before touching anything inside the panel.

Step 1: Check Panel Compatibility and Space

Most Type 2 SPDs connect to a dedicated double-pole breaker slot. Verify you have two adjacent open slots and that the SPD is compatible with your panel brand. The Siemens FS140 works with Siemens and Murray panels.

Step 2: Turn Off the Main Breaker

Turn off the main breaker and use your voltage tester to confirm the bus bars are de-energized. The service entrance wires at the top remain live.

Step 3: Install the Dedicated Breaker

Install a double-pole 15A or 20A breaker (per SPD instructions) in two adjacent open slots.

Step 4: Run the SPD Leads Into the Panel

Mount the SPD unit near the panel. Remove a knockout, feed the wire leads through, and strip the ends with the wire stripper.

Step 5: Connect the Wires

• Black wire to one terminal of the double-pole breaker
• Red wire to the other terminal of the double-pole breaker
• White wire to the neutral bus bar
• Green wire to the ground bus bar

Tighten all connections firmly.

Step 6: Restore Power and Verify

1. Close the panel cover
2. Turn the main breaker back ON
3. Turn on the dedicated SPD breaker
4. Verify the status LED is green (protection active)

Step 7: Label and Document

Label the dedicated breaker as Whole House SPD in your panel directory. Note the installation date - replace the SPD if the status indicator shows protection has been lost.

Whole House SPD vs. Point-of-Use Surge Protectors

These work together, not as alternatives. The whole house SPD intercepts large external surges before they reach any outlet and protects hardwired appliances. Point-of-use strips catch smaller residual surges and protect sensitive electronics. Use both for maximum protection. The HANYCONY Surge Protector Power Strip is a solid point-of-use option for computers and home office equipment.

Frequently Asked Questions

How much does a whole house surge protector cost?

The device costs $50-150. Professional installation adds $100-300. Total installed cost is typically $150-450 - far less than replacing a single major appliance damaged by a surge.

Does a whole house surge protector protect against lightning?

It significantly reduces lightning damage risk by intercepting surges that travel through utility lines. A direct strike to your home can overwhelm any SPD. For maximum protection in high-risk areas, a Type 1 SPD at the service entrance provides additional coverage.

How do I know if my whole house surge protector is still working?

Check the status LED. Green means protection is active. If the LED is off or red, the SPD has absorbed a large surge and its protection components have been sacrificed - replace it immediately.

Can I install a whole house surge protector myself?

Yes, with a permit, if you are comfortable working inside the panel. Use a non-contact voltage tester throughout and follow all safety precautions. If you are not comfortable near live wires, hire a licensed electrician - installation typically takes 1-2 hours.

Quick Installation Recap

1. Check panel compatibility and available breaker slots
2. Turn off the main breaker and verify with voltage tester
3. Install a dedicated double-pole breaker in two open slots
4. Feed SPD wire leads through a panel knockout
5. Connect black and red to the breaker, white to neutral bus, green to ground bus
6. Restore power and verify status LED is green
7. Label the breaker and note the installation date

The Siemens FS140 is one of the highest-rated whole house surge protectors available - 140kA surge rating, clear status indicator, and a $25,000 connected equipment warranty.
