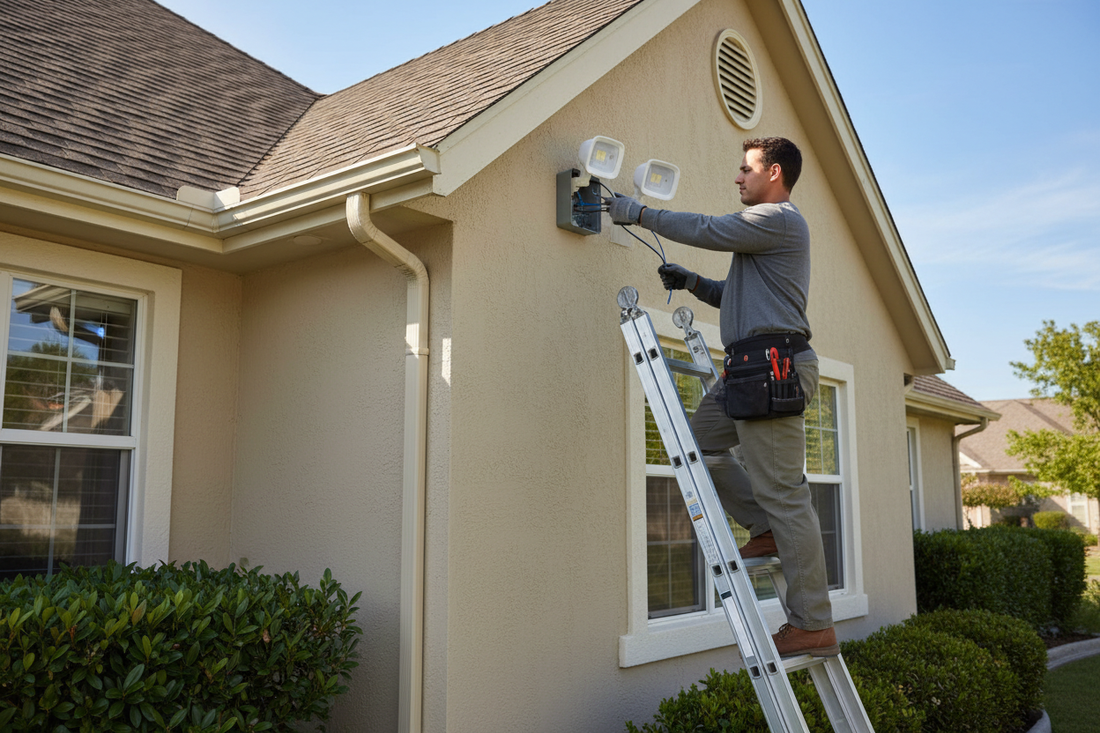

How to Install a Motion Sensor Light

A motion sensor light turns on automatically when it detects movement — deterring intruders, illuminating dark areas, and saving energy by only running when needed. Installing one is a straightforward DIY project that takes 30–60 minutes if you're replacing an existing outdoor fixture. Here's how to do it safely.

What You'll Need

Philips 44W LED Security Light with PIR Motion Sensor — 4,200 lumens, 5000K daylight, dual-head, 4 modes, waterproof. Replaces a standard outdoor junction box.
Klein Tools NCVT1P Non-Contact Voltage Tester — essential for confirming power is off before touching any wires.
Flathead and Phillips screwdrivers
Wire stripper
Needle-nose pliers
Ladder (for overhead installation)
Wire nuts (usually included with the fixture)

Before You Start: Safety First

Turn off the circuit breaker for the outdoor light circuit — not just the wall switch
Use your non-contact voltage tester to confirm power is off at the fixture before touching any wires
Work with a helper when using a ladder
Check local codes — replacing a like-for-like fixture is generally a homeowner DIY task; adding new wiring requires a permit in most jurisdictions

Step-by-Step Installation

Step 1: Turn Off Power

Locate the circuit breaker for the outdoor light and switch it off
Go to the fixture and test with your voltage tester — hold it near the wires; it should show no voltage
If the tester still shows voltage, you have the wrong breaker — find the correct one before proceeding

Step 2: Remove the Existing Fixture

Remove the screws holding the existing fixture to the junction box
Carefully pull the fixture away from the wall — the wires will still be connected
Test again with the voltage tester directly on the wires to confirm no power
Unscrew the wire nuts connecting the fixture wires to the house wires
Separate the wires and set the old fixture aside

Step 3: Check the Junction Box

The junction box must be rated for the weight of the new fixture — check the box's weight rating label
Most outdoor junction boxes are rated for 35–50 lbs — sufficient for most motion sensor lights
If the box is old, cracked, or not securely mounted, replace it before installing the new fixture
Confirm the box is weatherproof (has a gasket or is rated for outdoor use)

Step 4: Connect the Wires

Standard US residential wiring uses three wires:

Black (hot): Connects to the fixture's black wire
White (neutral): Connects to the fixture's white wire
Green or bare copper (ground): Connects to the fixture's green wire or ground screw

Feed the house wires through the fixture's mounting bracket
Connect black to black using a wire nut — twist clockwise until snug
Connect white to white
Connect ground to ground
Tug each wire nut gently to confirm it's secure
Tuck the wire nuts and excess wire into the junction box

Step 5: Mount the Fixture

Press the fixture's mounting plate against the junction box
Thread the mounting screws through the plate into the box — tighten until snug but not overtight
Ensure the gasket between the fixture and wall is properly seated for weatherproofing
Aim the light heads toward the area you want to illuminate

Step 6: Restore Power and Configure

Turn the circuit breaker back on
Turn the wall switch on
The Philips Security Light has 4 modes — select your preferred mode using the mode button:

Motion mode: Light activates on motion detection only
Dusk-to-dawn mode: Light stays on all night
Motion + dusk-to-dawn: Dim all night, bright on motion
Always on: Continuous illumination

Adjust the motion sensor head to cover the desired detection zone
Set sensitivity and duration using the adjustment dials (if present)
Test by walking through the detection zone — the light should activate

Adjusting Motion Sensor Settings

Detection Range and Angle

Most PIR motion sensors detect movement within a 180° arc and 30–70 feet range
Aim the sensor head toward the area you want monitored — not toward the street (too many false triggers from passing cars)
Mount height of 6–9 feet provides optimal detection range

Sensitivity

High sensitivity: Triggers on small movements — may cause false triggers from animals or blowing branches
Low sensitivity: Requires larger movement to trigger — reduces false triggers but may miss smaller intruders
Start at medium sensitivity and adjust based on real-world performance

Duration (Time Delay)

Sets how long the light stays on after motion stops
Typical range: 30 seconds to 20 minutes
For security: 5–10 minutes is standard
For convenience (garage, pathway): 1–2 minutes is sufficient

Adding a Motion Sensor to an Existing Light (No Fixture Replacement)

If you want to add motion sensing to an existing fixture without replacing it, two options:

Motion sensor light socket adapter: Screws into the existing bulb socket; the bulb screws into the adapter. Adds motion sensing without any wiring changes.
Motion sensor wall switch: Replaces the existing wall switch with a motion-sensing switch. The light turns on when motion is detected in the room and off after a set delay. Good for indoor applications (bathrooms, hallways, garages).

Frequently Asked Questions

Do I need an electrician to install a motion sensor light?

If you're replacing an existing outdoor fixture with a new motion sensor light, it's a straightforward DIY project — no electrician needed in most jurisdictions. If you're adding a new fixture where there's no existing wiring, you'll need an electrician to run the circuit.

Why does my motion sensor light stay on all the time?

Most motion sensor lights have a manual override — if the wall switch is turned off and on quickly (within 1–2 seconds), the light enters always-on mode. Turn the switch off, wait 5–6 seconds, then turn it back on to reset to motion-sensing mode.

Why does my motion sensor light keep triggering falsely?

Common causes: sensitivity set too high, sensor aimed at a road or area with frequent movement (cars, animals), heat sources in the detection zone (HVAC vents, dryer exhausts), or blowing vegetation in the sensor's field of view. Reduce sensitivity, reposition the sensor head, and trim any vegetation in the detection zone.

Can I install a motion sensor light in a 3-way switch circuit?

Standard motion sensor lights are designed for single-pole switch circuits. Installing in a 3-way circuit (two switches controlling one light) requires a motion sensor specifically designed for 3-way applications, or a motion sensor socket adapter that bypasses the switch entirely.

Quick Installation Checklist

☐ Turn off breaker and verify with voltage tester
☐ Remove old fixture and disconnect wires
☐ Check junction box rating and condition
☐ Connect black-to-black, white-to-white, ground-to-ground
☐ Mount fixture with gasket seated
☐ Restore power and select operating mode
☐ Aim sensor and light heads
☐ Test by walking through detection zone
☐ Adjust sensitivity and duration as needed
