How to Install a Barn Door Correctly

Installing a barn door correctly is the difference between a door that slides smoothly and quietly for years and one that drifts, wobbles, or falls off the track. The key is proper track mounting, precise hanger alignment, and a level installation. Here's a detailed, step-by-step guide to getting it right.

What You'll Need

• Barn door hardware kit: SMARTSTANDARD 6.8FT Barn Door Hardware Kit with J Shape Hanger
• Stud finder: Stud Finder Wall Scanner 5-in-1
• Laser level: Laser Level Line Tool by AikTryee
• Power drill: BLACK+DECKER 12V Drill & Home Tool Kit
• Screwdriver set: CRAFTSMAN Screwdriver Set, 8-Piece
• Miter saw: SKIL 10" Dual Bevel Sliding Compound Miter Saw
• Brad nailer: Metabo HPT Brad Nailer 18 Gauge NT50AE2
• Finish nails: Mr. Pen Nail Assortment Kit, 600 Pcs
• Construction adhesive: Loctite PL Premium Construction Adhesive
• Caulk gun kit: Professional Caulk Gun Kit 5-in-1
• Silicone caulk: GE Advanced Silicone Caulk, Clear
• Sandpaper: Atosun 45PCS Sandpaper Set

Before You Start: Critical Checks

• Wall space: You need clear wall space equal to the door width on the side the door slides to. Measure carefully — light switches, outlets, and trim can all be obstacles.
• Header framing: The wall above the opening must have solid framing to support the track. Use the stud finder to confirm. If there's no solid header, you'll need to install a header board (a piece of 2x6 or 2x8 lumber secured into the studs on either side of the opening).
• Door size: The door should be 2 inches wider than the opening (1 inch overlap on each side) and 1 inch taller than the opening.
• Track length: The track should be at least twice the door width to allow the door to fully open.

Step 1: Install a Header Board (If Needed)

If there's no solid framing above the opening, cut a 2x6 or 2x8 board to span the opening and extend at least 6 inches past each side. Use the stud finder to locate studs on each side of the opening. Drive lag screws through the header board into the studs. This creates a solid mounting surface for the track.

Step 2: Mark the Track Position

The track mounts above the door opening. The bottom of the track spacers should be positioned so the door hangs with its bottom edge 1/2" above the floor. Calculate this height: door height + 1/2" floor clearance + hanger drop distance (check your hardware specs) = track mounting height from floor. Use the laser level to mark a perfectly level line at this height across the full track length.

Step 3: Mount the Track Spacers

The SMARTSTANDARD hardware kit includes wall spacers that hold the track away from the wall (so the door clears the door casing). Position spacers at each stud location along the track. Drive lag screws through the spacers into the studs — use the correct lag screw length to penetrate at least 1.5" into solid wood. Do not use drywall screws — they're not strong enough for barn door loads.

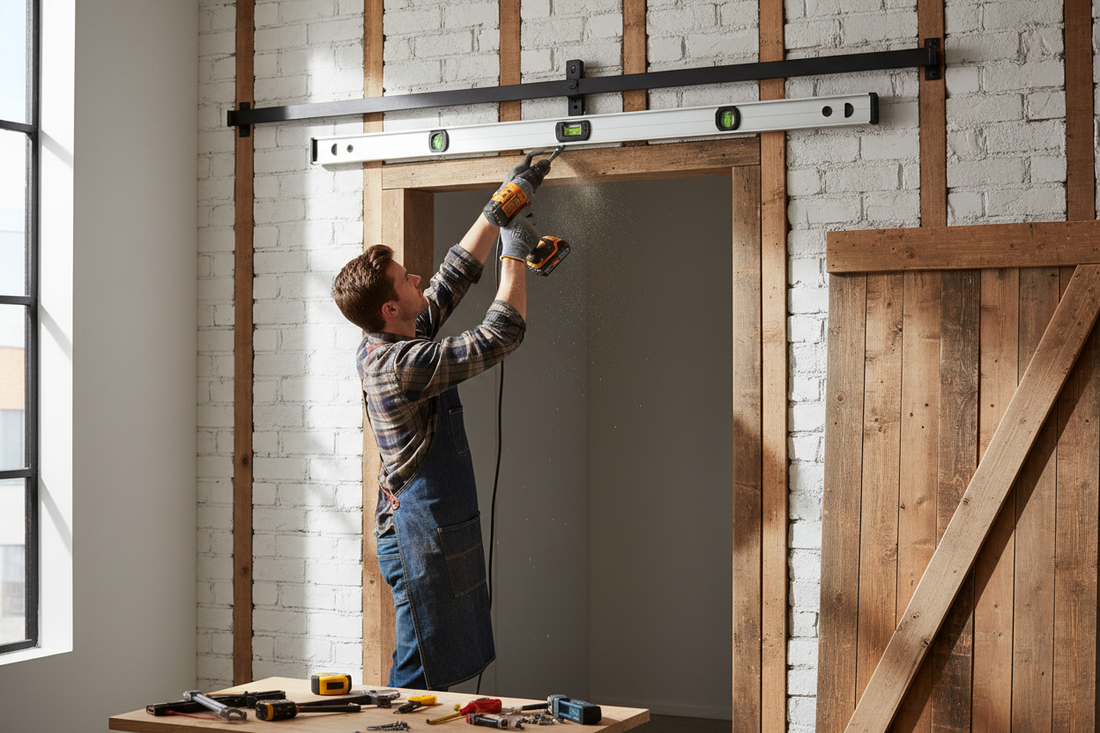

Step 4: Mount the Track

Hang the track on the spacers and secure with the provided bolts. Use the laser level to confirm the track is perfectly level before fully tightening. Even a 1/8" tilt will cause the door to drift. Install the end stops at both ends of the track.

Step 5: Attach Hangers to the Door

Lay the door flat on sawhorses. Mark the hanger positions according to the hardware instructions — typically 6" from each end of the door. Drill pilot holes and attach the J-shape hangers with the provided bolts. Tighten firmly. Use the laser level to confirm both hangers are at exactly the same height on the door — misaligned hangers cause the door to hang crooked.

Step 6: Hang the Door

With a helper, lift the door and hook the hangers onto the track. Lower carefully until the hangers seat fully on the track wheels. Test the sliding action — the door should glide smoothly with minimal effort.

Step 7: Install the Floor Guide

Install the floor guide at the center-bottom of the door opening. The guide keeps the bottom of the door from swinging away from the wall. Most guides are surface-mounted with two screws — position so the door slides through the guide channel smoothly without binding.

Step 8: Final Adjustments

Test the door through its full range of motion. Check that it covers the opening fully when closed and clears the wall when open. Adjust hanger height if needed (most hangers have a small adjustment range). Confirm the door hangs plumb — if it leans, adjust the hangers.

Pro Tips

• Always use lag screws into solid framing — never drywall anchors for barn door tracks.
• A perfectly level track is the single most important factor for smooth operation.
• Apply a small amount of paste wax to the track for even smoother sliding.
• Add a soft-close mechanism to the track for quiet, controlled closing.
• If the door drifts open or closed, the track is not level — re-check and adjust.
