How to Fix a Water Heater That Trips Breaker

If your water heater keeps tripping the circuit breaker, it's more than just an inconvenience — it's a sign that something is wrong with your electrical system or the heater itself. Repeatedly resetting a tripped breaker without fixing the root cause can be dangerous.

This guide walks you through the most common causes and how to fix each one safely.

Why Does a Water Heater Trip the Breaker?

A circuit breaker trips when it detects more electrical current than it's rated to handle. For water heaters, the most common causes are:

• A faulty or shorted heating element
• A bad thermostat
• A tripped high-limit switch
• A wiring problem
• A weak or undersized breaker

Step 1: Reset the Breaker (Once)

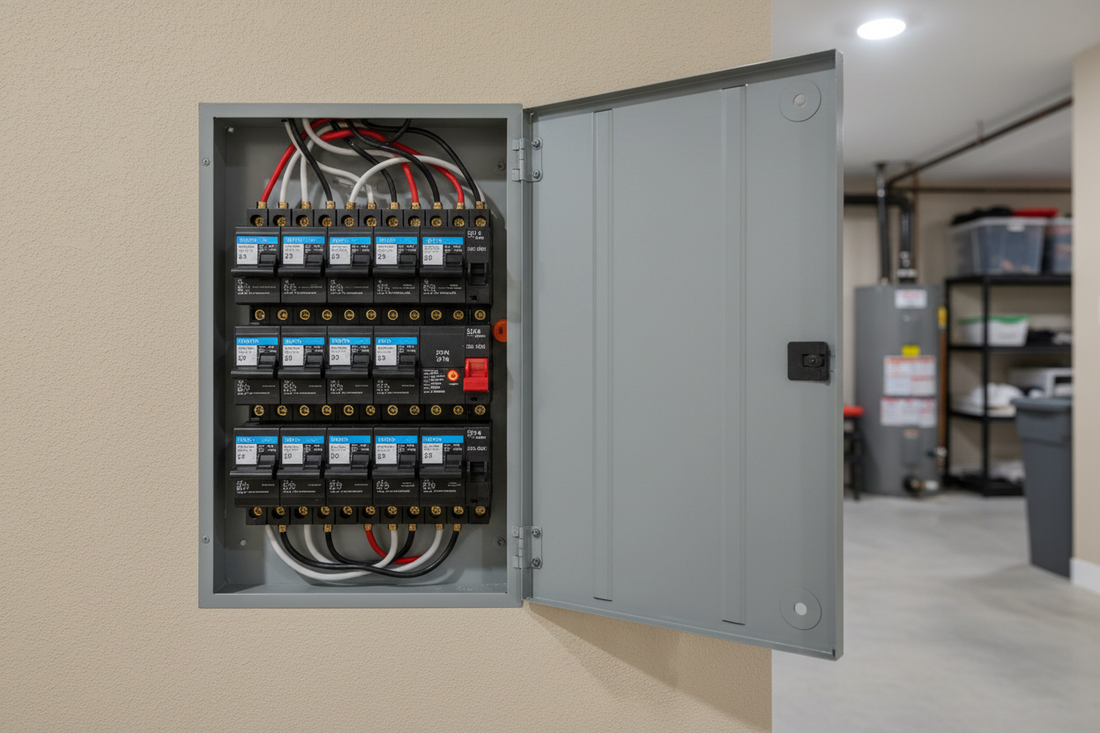

Go to your electrical panel and find the water heater breaker. If it's tripped, it will be in the middle position. Push it fully to OFF, then back to ON.

Important: If the breaker trips again immediately or within a short time, do not keep resetting it. This indicates a real electrical fault that needs to be diagnosed.

Step 2: Reset the High-Limit Switch

Before checking the heating elements, try resetting the high-limit switch on the water heater itself.

1. Turn off the breaker
2. Remove the upper access panel on the side of the heater
3. Pull back the insulation to expose the thermostat
4. Press the red reset button firmly until you hear a click
5. Replace the insulation and panel, then restore power

If the breaker trips again after this, move on to testing the heating elements.

Step 3: Test the Heating Elements

A shorted heating element is the most common cause of a repeatedly tripping breaker. A shorted element allows current to flow to ground, overloading the circuit.

How to test:

1. Turn off the breaker and disconnect power to the heater
2. Remove the access panels and disconnect the wires from each heating element
3. Set your multimeter to resistance (Ω)
4. Touch one probe to a terminal and the other probe to the metal tank body
5. Any reading other than infinite resistance (OL) means the element is shorted and must be replaced

💡 Recommended Tool: AstroAI Digital Multimeter — accurate and easy to use for testing heating elements and electrical continuity.

Step 4: Replace the Faulty Heating Element or Thermostat

If the element tests as shorted, replace it. It's also a good idea to replace the thermostat at the same time, since a faulty thermostat can cause the element to overheat and trip the high-limit switch.

💡 Recommended Parts: EWH-01 Electric Water Heater Tune-Up Kit — includes two 4500W 240V heating elements and two thermostats, fits most standard electric water heaters.

If you only need to replace the thermostat:

💡 Recommended Parts: EWH-00 Water Heater Thermostat — upper and lower thermostats for double-element heaters.

Step 5: Check the Wiring

Loose or damaged wiring can also cause a breaker to trip. With the power off, inspect the wiring connections inside the access panels. Look for:

• Burned or melted wire insulation
• Loose terminal connections
• Corrosion on terminals

If you find damaged wiring, call a licensed electrician — do not attempt to repair burned wiring yourself.

Step 6: Check the Breaker Itself

If the heating elements and thermostat test fine, the breaker itself may be weak or failing. Breakers can wear out over time and trip at lower loads than they're rated for.

A licensed electrician can test the breaker and replace it if needed. Water heaters typically require a dedicated 30-amp double-pole breaker.

When to Call a Professional

Call a licensed electrician or plumber if:

• The breaker trips immediately after reset
• You find burned or damaged wiring
• The breaker itself needs replacement
• You're not comfortable working with electrical components

Never ignore a repeatedly tripping breaker. It is a safety device protecting your home from electrical fires.
