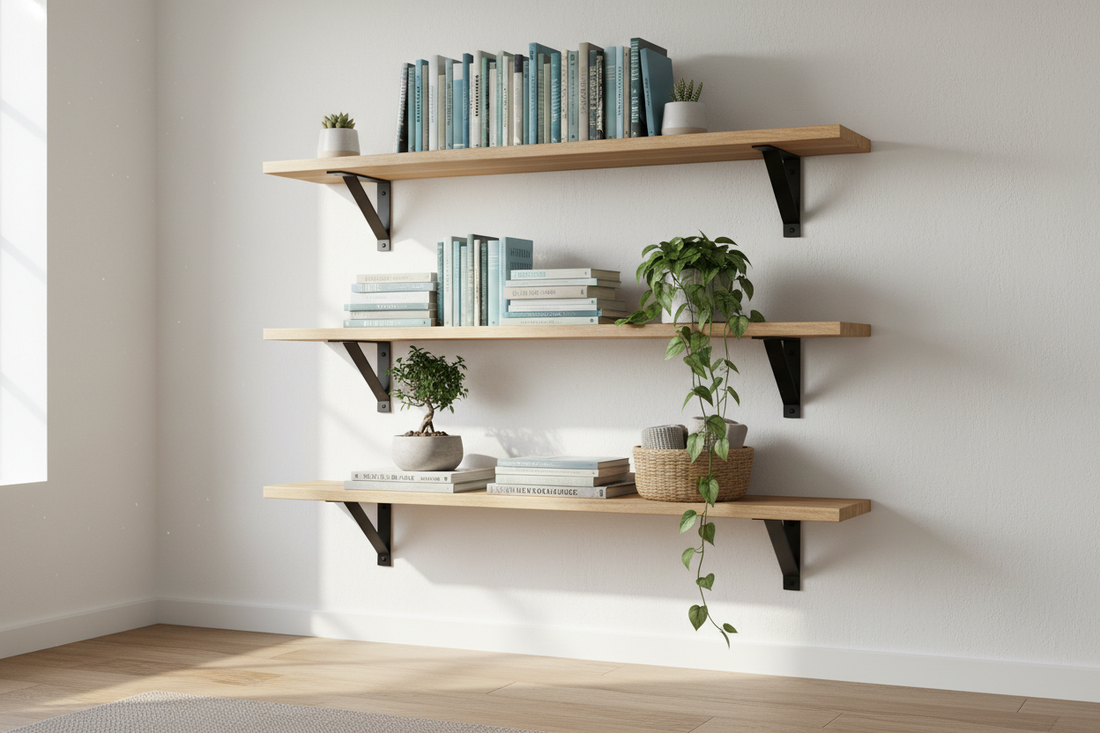

How to Build Floating Shelves with Brackets

Why Use Brackets for Floating Shelves?

Bracket-mounted floating shelves are the easiest and most beginner-friendly way to add wall shelving. Brackets provide strong, reliable support and are available in styles ranging from industrial black iron to sleek modern chrome. You get the look of floating shelves with the simplicity of a straightforward installation — no complex cleat systems required.

Tools & Materials You'll Need

Tools

• Drill/Driver: DEWALT 20V MAX Cordless Drill/Driver Kit — for driving screws into studs
• Stud Finder: 5-in-1 Stud Finder Wall Scanner — to locate studs for secure mounting
• Orbital Sander: DEWALT 20V MAX Orbital Sander — for finishing the shelf board
• Level, tape measure, pencil

Materials

• 1×8 or 1×10 board (pine, oak, or walnut) cut to desired length
• Floating shelf brackets (L-brackets, hairpin brackets, or concealed pin brackets)
• Wood Screws Assortment Kit — 1-1/4" for shelf-to-bracket, 2–3" for wall mounting
• Titebond III Ultimate Wood Glue (optional, for laminated shelves)
• Sandpaper (80, 120, 220 grit), stain, polyurethane

Choosing the Right Bracket

The bracket style you choose affects both the look and the load capacity of your shelf:

• L-brackets: Classic, strong, and inexpensive. Visible from the side but very sturdy. Best for utility shelves or industrial-style décor.
• Hairpin brackets: Trendy mid-century modern look. Available in 2-rod and 3-rod styles. Great for lighter loads.
• Concealed pin/rod brackets: Insert into holes drilled in the shelf bottom for a true floating look. Strongest option when anchored into studs.
• Heavy-duty L-brackets: For shelves holding 50+ lbs. Use 3/16" or 1/4" steel brackets.

Step-by-Step Instructions

Step 1: Cut and Finish Your Shelf Board

Cut your board to the desired length. Sand with 80, 120, and 220-grit sandpaper until smooth. Apply stain and 2 coats of polyurethane. Finishing before mounting is much easier than finishing on the wall.

Step 2: Locate Studs and Mark Bracket Positions

Use your stud finder to locate studs. Mark stud centers along your shelf line. Position brackets to align with studs whenever possible — this is critical for load-bearing shelves. For a 36" shelf, use at least 2 brackets; for 48"+, use 3.

Step 3: Mark and Level Bracket Positions

Hold the first bracket against the wall at your desired height. Use a level to confirm it's plumb (vertical). Mark the screw holes with a pencil. Repeat for the second bracket, using a long level across both bracket tops to ensure they're at the same height.

Step 4: Install the Brackets

Drill pilot holes at your marked positions. Drive screws through the bracket mounting holes into the wall studs. For each bracket, use at least 2 screws into the stud. Give each bracket a firm tug to confirm it's solid before proceeding.

Step 5: Mount the Shelf

Set the shelf board on top of the brackets. Center it so the overhang is equal on both sides. From underneath, drive screws up through the bracket shelf holes into the underside of the board. Use screws that are long enough to grip but won't poke through the top surface.

Step 6: Final Check

Place a level on the shelf surface to confirm it's perfectly horizontal. Load the shelf gradually and check for any flex or movement. A properly installed bracket shelf should feel completely solid.

Pro Tips

• Paint brackets to match the wall for a near-invisible look even with visible brackets.
• Use 3 brackets for shelves over 48" to prevent sagging in the middle.
• Pre-drill the shelf board before driving screws from the bracket to avoid splitting.
• Mix bracket styles on a gallery wall for an eclectic, curated look.
• Add a lip to the front edge of the shelf to keep items from sliding off.

Final Thoughts

Bracket-mounted floating shelves are the fastest path from bare wall to beautiful storage. With the right brackets, a quality board, and proper stud anchoring, you can install a set of shelves in under two hours. The result looks custom, holds real weight, and costs a fraction of store-bought shelving systems.
