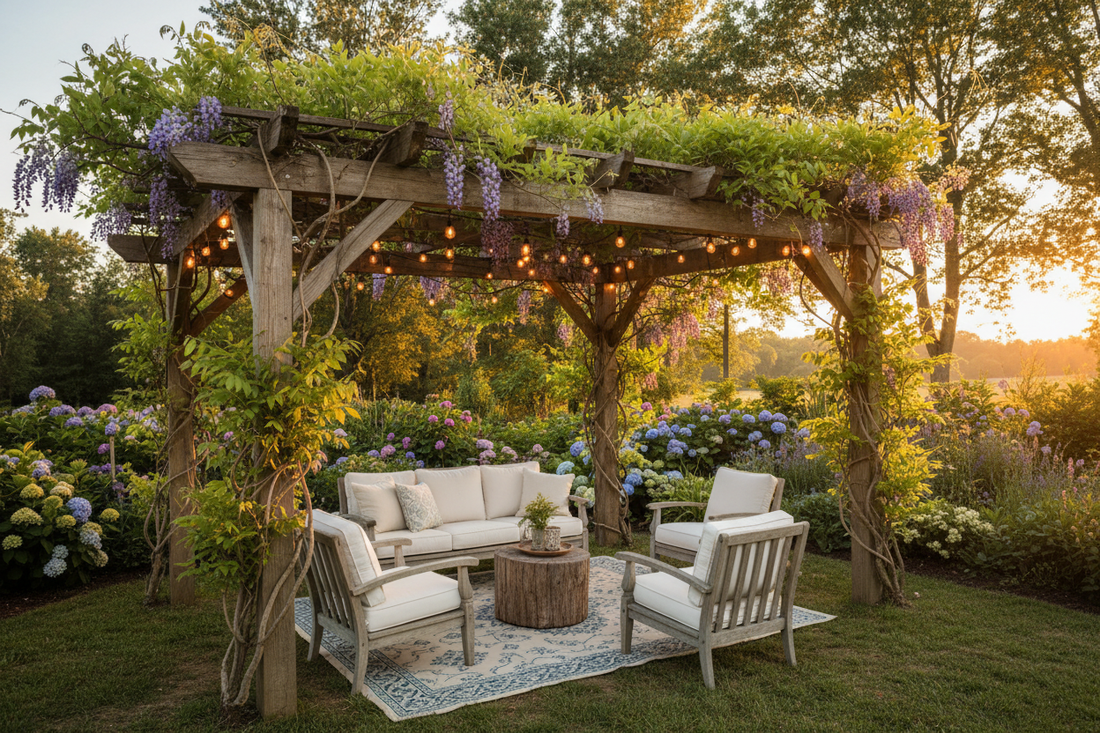

How to Build a Pergola from Scratch

Why Build a Pergola?

A pergola transforms a backyard from an empty space into an outdoor room. It defines a seating area, supports climbing plants, holds string lights, and creates a sense of enclosure and intimacy that makes outdoor living genuinely enjoyable. A well-built pergola adds significant value to your home and costs a fraction of what a contractor would charge. This guide walks you through building a classic freestanding pergola from scratch.

Tools & Materials You'll Need

Tools

• Drill/Driver: DEWALT 20V MAX Cordless Drill/Driver Kit
• Circular Saw: DEWALT ATOMIC 20V MAX Circular Saw
• Orbital Sander: DEWALT 20V MAX Orbital Sander
• Post hole digger or power auger — for setting posts in the ground
• Tape measure, 4-foot level, speed square, pencil, string line
• Ladder

Materials

• 4x4 or 6x6 pressure-treated posts — for the vertical columns (set in concrete)
• 2x8 or 2x10 lumber — for the main beams (spanning between posts)
• 2x6 lumber — for the rafters (running perpendicular to beams)
• 2x4 or 1x4 lumber — for the decorative top slats (optional)
• Wood Screws Assortment Kit — exterior-rated galvanized or stainless
• Post base hardware — if mounting to an existing deck or concrete pad
• Concrete mix — for setting posts in the ground
• Post caps and beam brackets — for connecting beams to posts
• Exterior stain or paint

Standard Pergola Dimensions

• Post height: 8–10 feet (above ground)
• Post spacing: 8–12 feet between posts
• Beam overhang: 12–18" beyond the outer posts on each end
• Rafter spacing: 16–24" on center
• Top slat spacing: 6–12" apart

Step-by-Step Instructions

Step 1: Plan and Mark Post Locations

Decide on pergola dimensions. A 10x12 or 12x16 pergola is a good starting size for most backyards. Mark the four post locations with stakes. Use the 3-4-5 triangle method or measure diagonally to confirm the layout is perfectly square before digging.

Step 2: Dig Post Holes and Set Posts

Dig post holes at least 24–36" deep (below the frost line in cold climates). The hole diameter should be 3x the post width. Set posts in the holes, check for plumb in both directions with a level, and brace temporarily with 2x4 stakes. Mix and pour concrete around each post. Let cure for 48 hours before proceeding.

Step 3: Cut Posts to Height

Once concrete has cured, snap a chalk line at the desired post height and cut all posts to the same height with a circular saw. Use a level to confirm all post tops are at the same elevation — this is critical for level beams.

Step 4: Install the Beams

Cut the main beams from 2x8 or 2x10 lumber. Beams run along the long dimension of the pergola, spanning between posts. Lift beams into position (you'll need a helper) and attach to the post tops using post cap hardware or by toe-screwing with 3" exterior screws. The beams should overhang the outer posts by 12–18" on each end. Cut decorative angles on the beam ends for a finished look.

Step 5: Install the Rafters

Cut rafters from 2x6 lumber. Rafters run perpendicular to the beams, spanning across the pergola width. Space rafters 16–24" on center. Attach to the beams using rafter ties or by toe-screwing. Cut decorative angles on the rafter ends to match the beam ends. The rafters should overhang the outer beams by 12–18" on each end.

Step 6: Install Top Slats (Optional)

For additional shade and a more finished look, install 2x4 or 1x4 top slats running perpendicular to the rafters. Space 6–12" apart. Attach to the rafters with exterior screws. The slats add visual interest and provide a surface for climbing plants to grip.

Step 7: Add Decorative Details

Cut decorative profiles on all beam and rafter ends — a simple 45° angle cut or a curved profile with a jigsaw. These details transform a basic structure into a beautiful architectural feature. Sand all cut ends smooth.

Step 8: Sand and Finish

Sand all surfaces from 80 to 220-grit. Apply exterior stain or paint. For a natural wood look, use a semi-transparent exterior stain that enhances the wood grain while protecting from UV and moisture. Apply 2 coats, letting each dry fully.

Step 9: Add String Lights and Accessories

Attach screw hooks to the beams and rafters for string lights. Plant climbing vines (wisteria, roses, clematis, or jasmine) at the base of each post. Add outdoor furniture, an outdoor rug, and cushions to complete your outdoor room.

Pergola Variations

• Attached pergola: One side attaches to the house wall using a ledger board, eliminating two posts
• Shade sail pergola: Add a fabric shade sail between the posts for full sun protection
• Louvered pergola: Install adjustable louvers on the roof for variable shade control
• Pergola with curtains: Add outdoor curtain panels on the sides for privacy and wind protection

Pro Tips

• Set posts below the frost line in cold climates to prevent heaving.
• Use 6x6 posts for a more substantial, architectural look — they're worth the extra cost.
• Cut decorative angles on all beam and rafter ends — this single detail transforms the look.
• Apply stain before assembly where possible — much easier to finish flat lumber than an assembled structure.
• Check local building codes — some areas require permits for structures over a certain size.

Estimated Cost & Time

Materials: $400–$900 depending on size and lumber species. Time: Full weekend with a helper. A backyard feature that adds real home value.

Final Thoughts

A pergola is one of the most transformative outdoor projects you can build. It creates an outdoor room, supports plants and lights, and makes your backyard a place you actually want to spend time. Build it right and it will be the centerpiece of your outdoor living space for decades.
