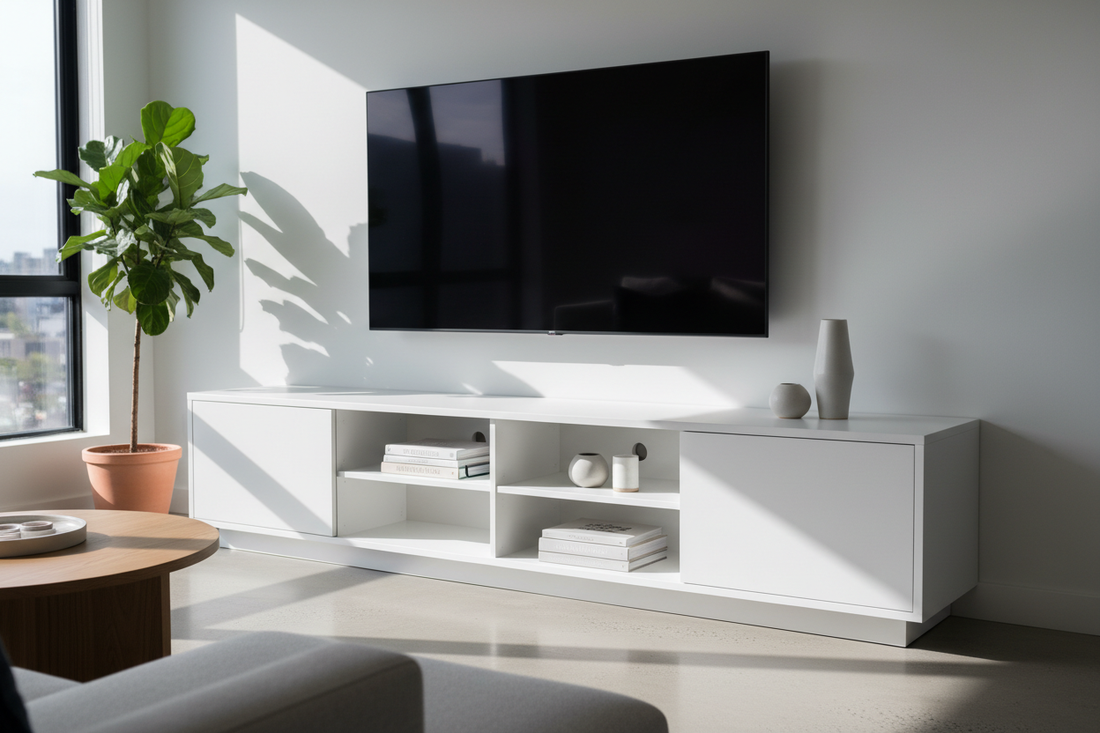

How to Build a Media Console from Scratch

Media Console vs. TV Stand: What's the Difference?

A media console is a longer, lower piece of furniture — typically 60–72" wide and 18–22" tall — designed to hold a TV and organize all your media equipment, cables, and accessories. Unlike a basic TV stand, a media console usually has a combination of open shelves, closed cabinet sections, and dedicated cable management. Building one from scratch gives you a fully custom entertainment center that fits your room, your TV, and your equipment perfectly.

Tools & Materials You'll Need

Tools

• Drill/Driver: DEWALT 20V MAX Cordless Drill/Driver Kit
• Circular Saw: DEWALT ATOMIC 20V MAX Circular Saw
• Orbital Sander: DEWALT 20V MAX Orbital Sander
• Pocket Hole Jig: General Tools Pocket Hole Jig Kit
• Brad Nailer: Metabo HPT Brad Nailer
• Clamps: WORKPRO Bar Clamps Set
• Tape measure, speed square, level, pencil

Materials

• 3/4" plywood (birch or maple veneer) — for carcass, shelves, and doors
• 1/4" plywood — for back panel
• 1x3 or 1x4 pine — for face frame
• Concealed European cabinet hinges — for doors
• Door pulls or knobs
• Wood Screws Assortment Kit
• Titebond III Ultimate Wood Glue
• Brad Nails
• Iron-on edge banding
• Sandpaper (80, 120, 220 grit), primer, paint or stain
• Furniture leveling feet or tapered legs
• Cable management grommets and clips

Standard Media Console Dimensions

• Width: 60–72" (wider than the TV for a balanced look)
• Height: 18–22" (lower than a TV stand — pairs with a wall-mounted TV)
• Depth: 16–20"

Planning Your Layout

A classic media console layout divides the width into three sections:

• Left cabinet: Closed doors hiding a game console, streaming devices, or storage
• Center open section: Open shelves for a cable box, receiver, or display items
• Right cabinet: Closed doors for DVDs, games, or additional equipment

Adjust the proportions based on your equipment and storage needs.

Step-by-Step Instructions

Step 1: Cut All Panels

Cut from 3/4" plywood: 2 outer side panels (full height x depth), interior dividers (same), top panel (full width x depth), bottom panel (same), shelves for open sections, and door panels. Apply iron-on edge banding to all visible edges before assembly.

Step 2: Assemble the Carcass

Drill pocket holes in the top and bottom panel ends. Glue and screw the top and bottom to the outer side panels. Install interior dividers using pocket hole screws and glue. Check for square throughout. Attach the 1/4" back panel with brad nails to lock the carcass square.

Step 3: Install Interior Shelves

Install fixed shelves in the open center section using pocket hole screws and glue. For the cabinet sections, drill shelf pin holes for adjustable shelves before installing the dividers.

Step 4: Add the Face Frame

Build a face frame from 1x3 pine: two outer stiles, interior stiles at each divider, and horizontal rails at top and bottom. Glue and nail to the front of the carcass. The face frame defines the door openings and gives the console a furniture-quality look.

Step 5: Build and Hang the Doors

Cut door panels from 3/4" plywood to fit each cabinet opening with 1/8" clearance on all sides. Apply edge banding to all four edges. Install concealed European hinges — typically 2 hinges per door. Mount to the face frame and adjust until doors hang straight and close flush.

Step 6: Cable Management

Drill 2" cable management holes in the back panel behind each equipment location. Add rubber grommets. Route a power strip through the back panel into the console interior for a centralized power solution. Use cable clips to organize cords inside the cabinet sections.

Step 7: Sand and Finish

Sand all surfaces from 80 to 220-grit. For a painted console: apply primer, then 2 coats of semi-gloss paint. For a natural wood look: stain and 2–3 coats of polyurethane. Paint the interior of cabinet sections white for better visibility.

Step 8: Add Legs and Hardware

Attach tapered wood legs or hairpin legs for a mid-century modern look, or adjustable leveling feet for a more traditional style. Install door pulls or knobs. Add soft-close door bumpers to prevent slamming.

Ventilation for Electronics

Media equipment generates significant heat. To prevent overheating:

• Drill 1–2" ventilation holes in the back panel behind enclosed equipment
• Leave at least 2" of clearance around all equipment
• Consider adding a small USB-powered fan inside enclosed sections
• Never fully seal a cabinet section that contains active electronics

Pro Tips

• Use concealed European hinges — they're adjustable and give a professional, seamless look.
• Make the console wider than your TV by at least 6" on each side.
• Paint the interior white even if the exterior is stained — it makes finding remotes and cables much easier.
• Add LED strip lights inside open shelves for a premium, backlit look.
• Use a power conditioner inside the console to protect expensive electronics.

Estimated Cost & Time

Materials: $120–$250. Time: Full weekend. A media console that organizes your entire entertainment setup beautifully.

Final Thoughts

A custom media console is the ultimate living room organization project. It hides the chaos of cables and equipment, displays your TV beautifully, and gives your living room a designed, intentional look. Build it to your exact dimensions and finish it to match your room — the result will look like a custom built-in that cost thousands.
