Why Is Oven Element Glowing Unevenly

A healthy oven heating element should glow a uniform, bright orange-red along its entire length when fully heated. If yours glows brightly in some sections and dimly or not at all in others, the element is failing and needs to be replaced. Here's what's happening and what to do.

What Uneven Glowing Means

Oven heating elements are essentially long resistance wires coiled inside a metal sheath. When electricity flows through them, the resistance generates heat and the element glows. Uneven glowing indicates that the resistance is not uniform along the element's length — meaning some sections are conducting electricity differently than others.

This is almost always caused by internal damage to the element — a developing break, internal hot spot, or partial failure of the resistance wire inside the sheath.

Is It Safe to Use an Oven with an Unevenly Glowing Element?

No — stop using the oven and replace the element.

An element that is partially failing can:

• Arc or spark internally, potentially causing a fire
• Fail completely mid-cooking, leaving food undercooked
• Cause uneven cooking temperatures that are difficult to predict
• Trip the circuit breaker if it develops a short circuit

How to Confirm the Element Is Failing

Visual Inspection

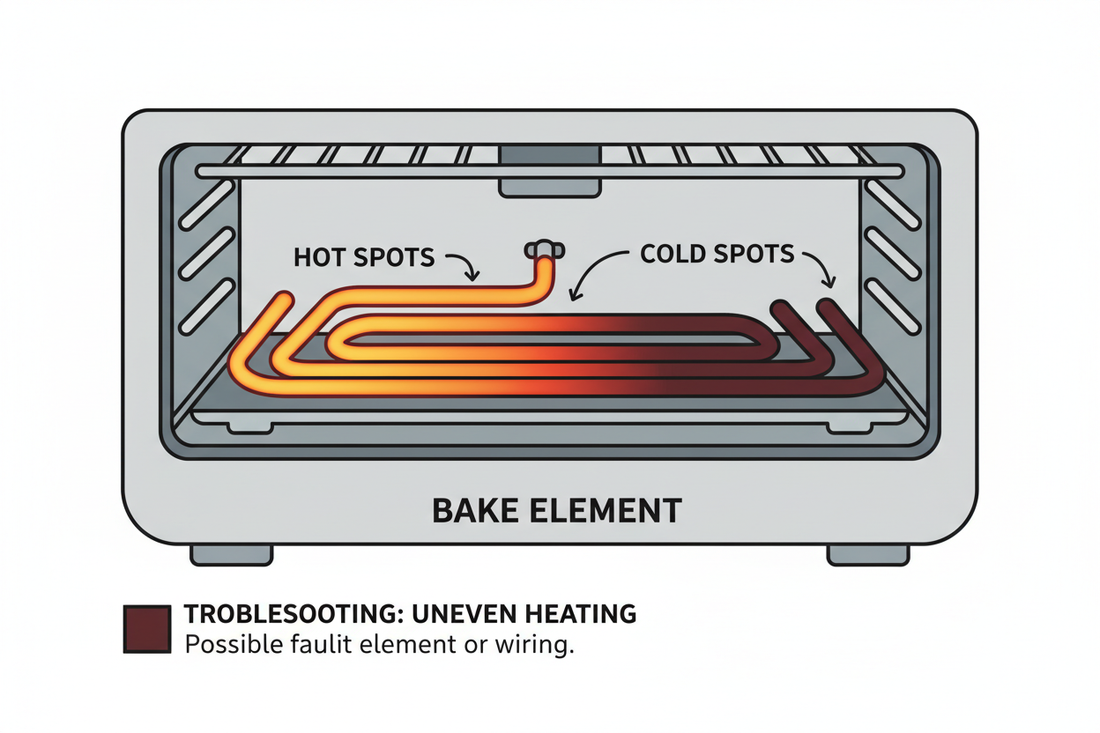

Turn the oven on to bake and observe the element from a safe distance. A failing element will show:

• Sections that glow dimly or not at all while others glow brightly
• Visible blistering, bubbling, or burn marks on the element sheath
• Holes or cracks in the element sheath
• Sparking or arcing from specific points on the element

Multimeter Test

With the oven disconnected from power, test the element for continuity and resistance. The AstroAI Digital Multimeter 2000 Counts measures both — set to resistance (ohms) mode and probe the element terminals. A healthy bake element typically reads 20–50 ohms. A reading of zero (short circuit) or infinite (open circuit) confirms the element has failed.

What to Do: Replace the Element

An unevenly glowing element cannot be repaired — it must be replaced. The WB44T10011 Oven Bake Element Replacement (compatible with GE, Hotpoint, RCA ranges) is a direct replacement for many common oven models. Always verify compatibility with your specific model number before ordering.

How Long Do Oven Elements Last?

Most oven heating elements last 5–10 years with normal use. Factors that shorten element life include frequent high-temperature cooking, food or liquid dripping onto the element, physical damage from pans touching the element, and power surges.

Summary

Uneven glowing means the element is failing and should be replaced before it fails completely or causes a safety issue. Confirm with a visual inspection and multimeter test, then replace with a compatible element. Do not continue using the oven with a visibly failing element.
