How to Vent Over the Range Microwave

Two Venting Options for Over-the-Range Microwaves

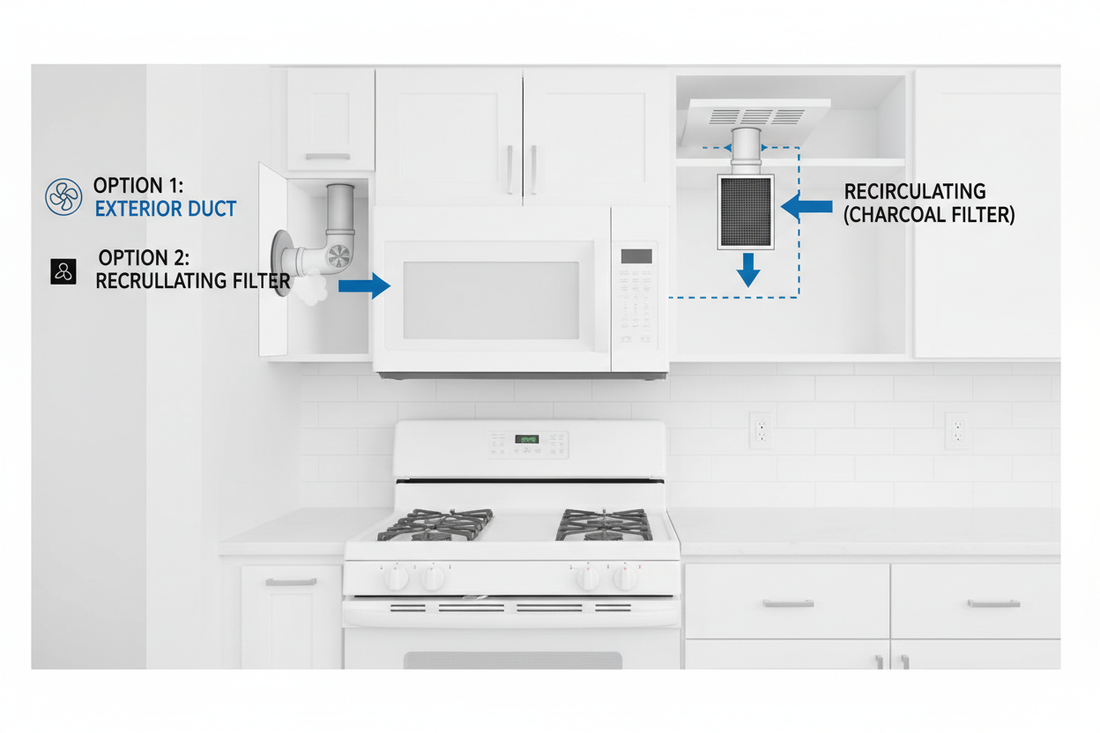

Every over-the-range (OTR) microwave has a built-in ventilation fan that removes cooking fumes, steam, and odors from the stovetop. But how that air is handled depends on your kitchen setup. There are two options: exterior venting (ducted) and recirculating (ductless). Understanding the difference helps you choose the right setup and configure your microwave correctly.

Option 1: Exterior Venting (Ducted) — Best Performance

Exterior venting routes cooking fumes and steam through ductwork to the outside of your home — through the wall behind the microwave, through the cabinet above and out the roof, or through the ceiling. This is the most effective ventilation method because it actually removes air from the kitchen rather than filtering and recirculating it.

Advantages of Exterior Venting

• Removes moisture, grease, smoke, and odors completely from the kitchen
• More effective at controlling cooking smells
• Better for heavy cooking (frying, sauteing, high-heat cooking)
• No filter replacement needed (only grease filters, which are washable)

Disadvantages of Exterior Venting

• Requires ductwork installation — more complex and expensive
• May require cutting through walls, cabinets, or ceiling
• Not always possible in apartments or condos
• Professional installation usually required for ductwork

Duct Routing Options

• Rear wall venting: Duct exits through the wall directly behind the microwave. Simplest exterior venting option.
• Top venting through cabinet: Duct exits through the top of the microwave, through the cabinet above, and out through the roof or soffit. Most common in new construction.
• Horizontal top venting: Duct exits the top and runs horizontally through the cabinet to an exterior wall.

Option 2: Recirculating (Ductless) — No Ductwork Required

In recirculating mode, the fan draws air through grease filters, then through a charcoal filter that absorbs odors, and recirculates the cleaned air back into the kitchen. No ductwork is required — the air never leaves the kitchen.

Advantages of Recirculating

• No ductwork installation required
• Works in any kitchen, including apartments and condos
• Easier and less expensive to set up
• More flexible installation

Disadvantages of Recirculating

• Less effective than exterior venting — moisture stays in the kitchen
• Charcoal filters must be replaced every 6 to 12 months
• Not ideal for heavy cooking or strong odors
• Recirculated air still contains some moisture and fine particles

How to Configure Your Microwave for Each Option

Most OTR microwaves ship configured for top exterior venting. To change the venting direction, you need to rotate the blower motor inside the microwave before installation. This is done by:

1. Removing the top grille of the microwave
2. Locating the blower motor assembly
3. Rotating it 90 degrees to the desired position (rear vent, top vent, or recirculating)
4. Securing it in the new position

For recirculating mode, you also need to install a charcoal filter (usually sold separately or included with the microwave). Refer to your specific model's installation manual for the exact procedure.

Charcoal Filter Maintenance for Recirculating Mode

If using recirculating mode, the charcoal filter must be replaced regularly:

• Replace every 6 months for average cooking frequency
• Replace every 3 to 4 months for heavy cooking
• Charcoal filters cannot be washed — they must be replaced
• Grease filters (metal mesh) can be washed in the dishwasher monthly

Which Option Is Right for You?

Final Thoughts

Exterior venting is always the better-performing option when it's feasible — it actually removes air from the kitchen rather than filtering and recirculating it. Recirculating is a practical alternative when ductwork isn't possible. Whichever option you choose, configure the blower correctly before installation and maintain the filters regularly for best performance.
