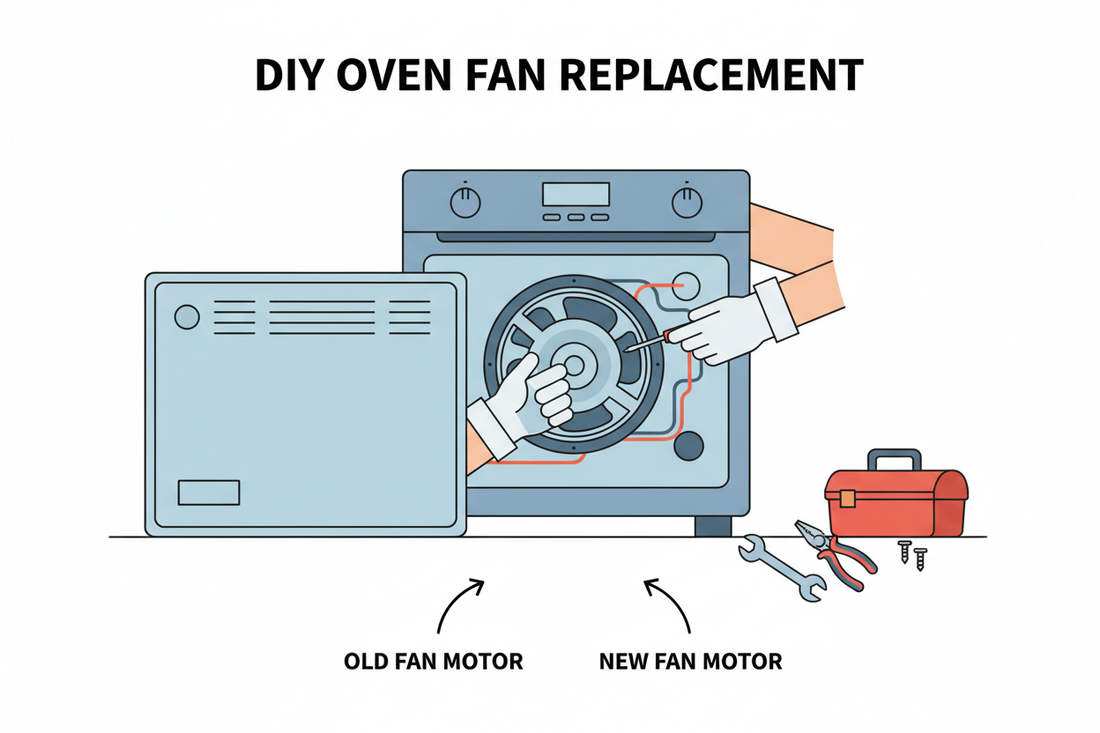

How to Replace Oven Fan

Replacing an oven fan motor is a moderately advanced DIY repair that can save you the cost of a service call. With the right part and basic tools, most homeowners can complete it in 45–90 minutes. Here's how.

Before You Start: Safety

• Disconnect the oven from power completely — unplug or switch off at the circuit breaker. Never work on oven wiring with power connected.
• Allow the oven to cool completely before starting
• Source the correct fan motor for your specific oven model — search your model number + "fan motor" or "fan oven motor"

What You'll Need

• Replacement fan motor (model-specific)
• Phillips and Torx screwdrivers
• Flathead screwdriver
• Needle-nose pliers
• Multimeter for testing (optional but recommended) — the AstroAI Digital Multimeter 2000 Counts verifies the new motor is functioning correctly after installation

Step 1: Access the Fan

The oven fan is located at the back of the oven cavity, behind a circular or square metal guard.

1. Remove the oven racks to give yourself clear access
2. Locate the fan guard at the back of the oven interior
3. Remove the fan guard — usually secured by a central nut or screws. Turn the central nut anti-clockwise to remove (note: some are reverse-threaded — try clockwise first if anti-clockwise doesn't work)
4. Remove the fan blade — it pulls straight off the motor shaft, or may be secured by a nut

Step 2: Access the Fan Motor

The fan motor is mounted on the back wall of the oven, accessible from behind the back panel.

1. Pull the oven away from the wall to access the back
2. Remove the back panel screws (typically 6–8 screws around the perimeter)
3. Carefully remove the back panel — the fan motor will be visible, mounted centrally

Step 3: Disconnect and Remove the Old Motor

1. Take a photo of the wiring connections before disconnecting anything
2. Disconnect the wiring connectors from the motor terminals — use needle-nose pliers if they're tight
3. Remove the motor mounting screws (usually 3–4 screws)
4. Remove the old motor

Step 4: Install the New Motor

1. Position the new motor in the same orientation as the old one
2. Secure with the mounting screws — tighten firmly but don't overtighten
3. Reconnect the wiring connectors in the same configuration as the original (refer to your photo)

Step 5: Reassemble

1. Replace the back panel and secure all screws
2. Push the oven back into position
3. From inside the oven, reattach the fan blade to the motor shaft
4. Replace the fan guard and secure the central nut
5. Replace the oven racks

Step 6: Test

1. Reconnect power
2. Turn the oven on to a fan setting
3. Listen for the fan — you should hear a smooth, quiet hum within 30–60 seconds
4. Check that the fan blade is spinning by looking through the back guard
5. Run the oven for 15–20 minutes to confirm normal operation

When to Call a Professional

• If you find burnt wiring or damaged terminals during the repair
• If the new motor doesn't run after installation (may indicate a control board fault)
• If you're not comfortable working with electrical components

Summary

Replace an oven fan by disconnecting power, removing the fan guard and blade from inside, accessing the motor from the back panel, swapping the motor, and reassembling. The whole process takes 45–90 minutes and requires only basic tools.
