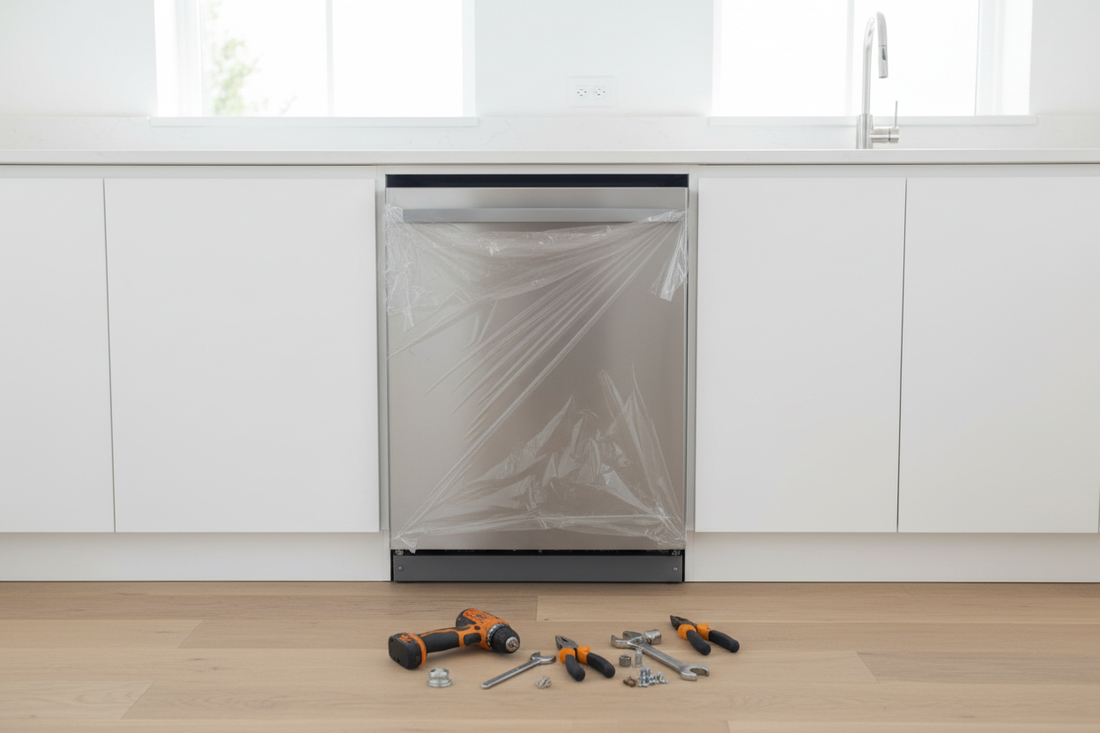

How to Install Dishwasher Yourself

Can You Install a Dishwasher Yourself?

Yes — installing a dishwasher is a manageable DIY project for most homeowners. It involves connecting a water supply line, a drain hose, and an electrical connection. If you are replacing an existing dishwasher, the connections are already in place and the job is straightforward. If you are installing a dishwasher where there was none before, you will need to run new plumbing and electrical connections, which is more complex and may require a licensed plumber or electrician depending on local codes.

What You Need

Tools

• Adjustable wrench
• Screwdrivers (flathead and Phillips)
• Pliers
• Level
• Utility knife
• Bucket and towels

Materials

• New dishwasher
• Braided stainless steel water supply line (if not included)
• Drain hose (usually included with the dishwasher)
• Hose clamps
• Teflon tape (plumber’s tape)
• Wire nuts (if hardwiring)

Step-by-Step: How to Install a Dishwasher

Step 1: Turn Off Power and Water

1. Turn off the circuit breaker for the dishwasher at your electrical panel
2. Turn off the water supply valve under the sink
3. Confirm power is off using a non-contact voltage tester before touching any wiring

Step 2: Remove the Old Dishwasher (If Replacing)

1. Open the dishwasher door and remove the screws securing it to the underside of the counter
2. Disconnect the water supply line from the inlet valve at the bottom of the dishwasher
3. Disconnect the drain hose from the sink drain or garbage disposal
4. Disconnect the electrical connection — either unplug from the outlet or disconnect the wire nuts
5. Slide the old dishwasher out carefully

Step 3: Prepare the New Dishwasher

1. Remove the kickplate at the bottom front of the new dishwasher
2. Locate the water inlet valve, drain hose connection, and electrical junction box
3. Thread the water supply line onto the inlet valve — wrap the threads with Teflon tape first and tighten with a wrench
4. Attach the drain hose to the drain hose outlet on the dishwasher

Step 4: Connect the Drain Hose

1. Route the drain hose to the sink drain or garbage disposal connection under the sink
2. Create a high loop in the drain hose — secure it as high as possible under the counter before it drops to the drain connection. This prevents backflow of dirty water into the dishwasher.
3. Secure the hose to the drain inlet with a hose clamp
4. If connecting to a garbage disposal, remove the knockout plug inside the disposal inlet before attaching the hose

Step 5: Connect the Water Supply

1. Connect the other end of the water supply line to the hot water shut-off valve under the sink
2. Tighten firmly but do not overtighten — hand tight plus a quarter turn with a wrench is sufficient

Step 6: Connect the Electrical

• If plug-in: Route the power cord to the outlet under the sink and plug in
• If hardwired: Connect the black wire to black, white to white, and green or bare copper to the ground screw using wire nuts. Secure the junction box cover.

Step 7: Slide In and Level

1. Carefully slide the dishwasher into the cabinet opening — feed the hoses and wiring through as you go
2. Adjust the leveling feet until the dishwasher is level from side to side and front to back
3. Secure the dishwasher to the underside of the counter using the mounting brackets and screws provided
4. Replace the kickplate

Step 8: Test

1. Turn the water supply back on and check all connections for leaks
2. Restore power at the circuit breaker
3. Run a short rinse cycle and check under the sink and around the dishwasher for any leaks
4. If no leaks are present, the installation is complete

When to Call a Professional

• You are installing a dishwasher where there was none before — new plumbing and electrical runs are required
• You are not comfortable working with electrical wiring
• Local building codes require licensed contractors for appliance installation
• You discover unexpected issues during removal of the old unit

Final Tips

• Always turn off power and water before starting
• Create a high loop in the drain hose to prevent backflow
• Check all connections for leaks before running a full cycle
• Keep the installation manual for your specific model — connection locations vary
