Air Conditioner Settings Explained

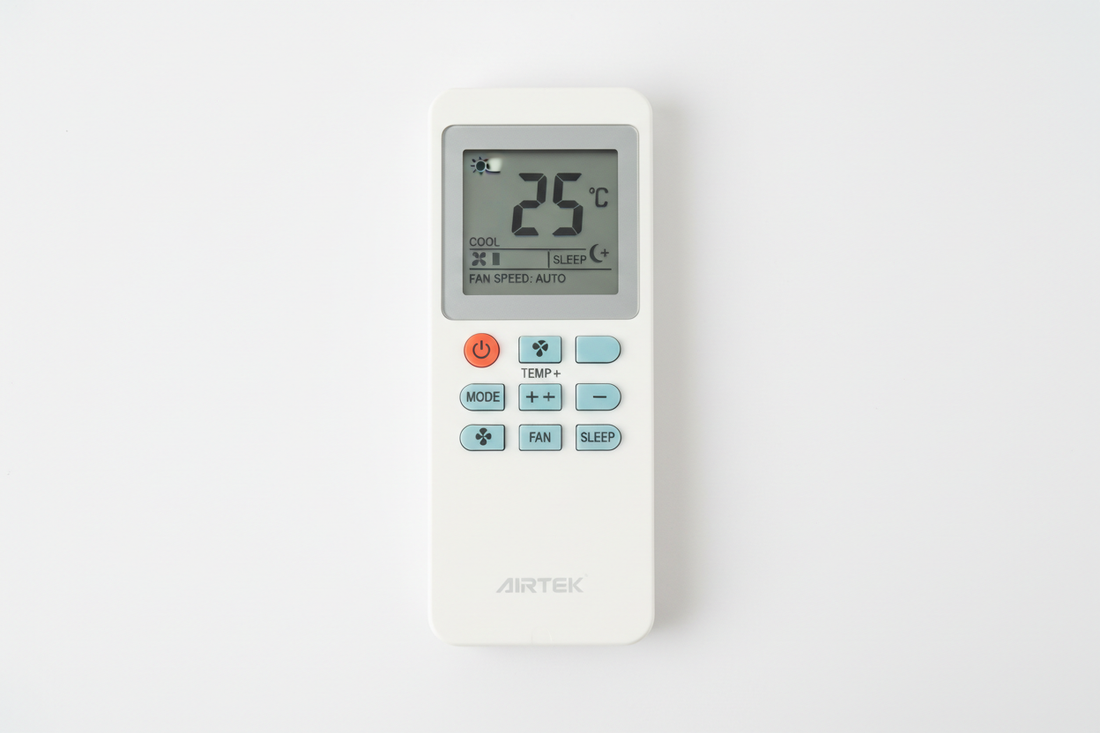

Your AC remote has a lot of buttons — and most people only ever use a few of them. Understanding what each setting does can help you stay more comfortable, save energy, and get more out of your unit. Here's a complete breakdown.

Mode Settings

❄️ Cool Mode

The standard cooling mode. The AC compressor runs to cool the air to your set temperature, then cycles on and off to maintain it. This is the mode you'll use most in summer.

🌡️ Heat Mode

Available on reverse-cycle (heat pump) units. The system reverses the refrigerant cycle to extract heat from outside air and bring it inside. Efficient down to around 40°F (5°C) outdoor temperature.

💧 Dry Mode (Dehumidify)

Removes humidity from the air without aggressively cooling it. The fan runs slowly and the compressor cycles briefly to condense moisture. Ideal for humid but not extremely hot days — makes the room feel more comfortable without overcooling. Uses less energy than full cool mode.

🌀 Fan Mode

Circulates air without activating the compressor. No cooling or heating — just airflow. Useful for mild days when you just want air movement, or to ventilate the room. Very low energy consumption.

🔄 Auto Mode

The unit automatically switches between cool, heat, and fan modes to maintain your set temperature. Convenient but can sometimes feel inconsistent if the temperature fluctuates a lot.

Fan Speed Settings

• Low: Quieter, more gradual cooling. Good for maintaining temperature once the room is already cool, or for sleeping.
• Medium: Balanced airflow and noise. Good for general use.
• High: Maximum airflow. Cools the room fastest but noisier. Use to bring the temperature down quickly, then switch to low or auto.
• Auto fan: The unit adjusts fan speed automatically based on how far the room temperature is from the set point. Efficient and convenient.

Temperature Setting

Set the temperature you want the room to reach — not how cold you want the air to feel. The AC will run until the room hits that temperature, then cycle to maintain it. The U.S. Department of Energy recommends 78°F (26°C) for comfort and efficiency when home.

Sleep Mode

Gradually raises the set temperature by 1–2°F per hour over a few hours, then holds. This accounts for the fact that your body temperature drops during sleep and you naturally need less cooling. Saves energy overnight without sacrificing comfort. See our full guide on how to use AC sleep mode.

Timer Function

Lets you schedule the AC to turn on or off at a set time. Use it to pre-cool the room before you arrive home, or to turn off automatically after you fall asleep. See our guide on how to use the AC timer.

Swing / Louver Direction

Controls the direction of the airflow from the indoor unit.

• Auto swing: The louvers move up and down continuously to distribute air evenly across the room.
• Fixed position: Aim airflow upward for cooling (cold air falls naturally) or horizontally for heating (warm air rises).

Turbo / Powerful Mode

Runs the compressor and fan at maximum capacity to reach the set temperature as fast as possible. Use it when you first enter a hot room. Switch to normal mode once the room is comfortable to save energy.

Economy / Energy Saver Mode

Turns off the fan when the compressor cycles off, rather than continuing to circulate air. Saves energy but can make the room feel less consistently comfortable. Good for mild conditions.

Quick Reference

Understanding your AC settings takes five minutes and can make a real difference in comfort and energy bills. Start with the right mode for the conditions, set a sensible temperature, and let the timer and sleep mode do the rest.
